M8 3-Pin Male Straight Connector – for industrial sensors and automation systems
Symbol:
P8-3MS
Our bestseller

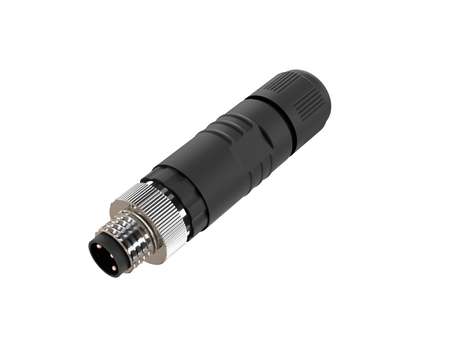

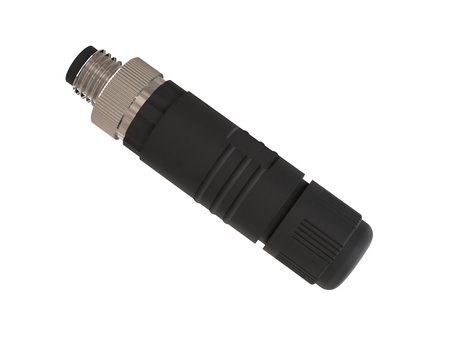

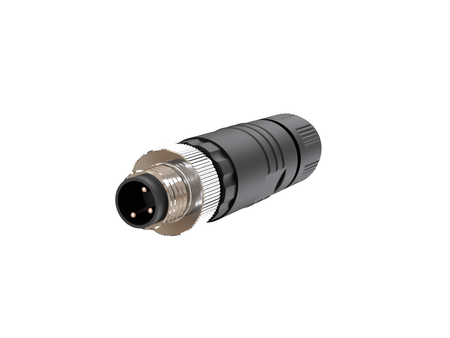

M8 3-Pin Male Straight Connector – for industrial sensors and automation systems
- ● M8 thread, 3 contacts, A-coded
- ● Male connector, straight housing
- ● Screw terminals – wire it on site, no soldering
- ● For 3.5–5 mm cable, conductor 0.14–0.5 mm²
- ● 60 V AC/DC, max. 4 A, IP67
- ● Operating range −40…+85 °C, PA housing, NBR seal
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
Safety and product resources

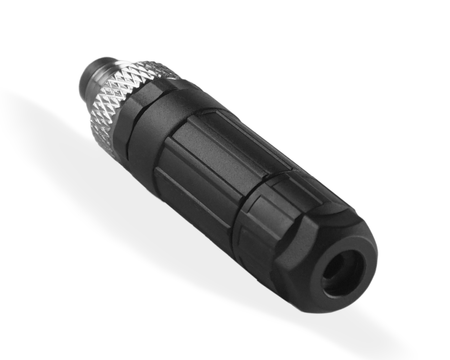

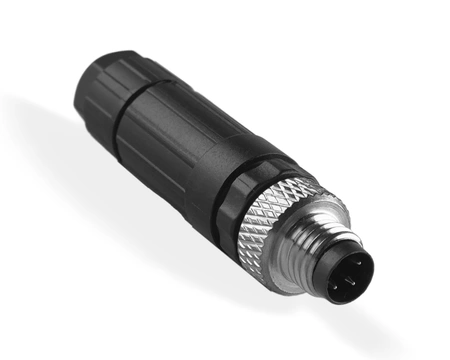

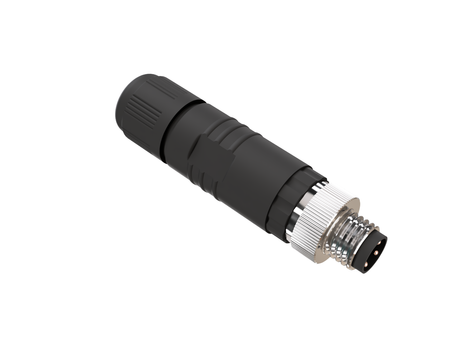

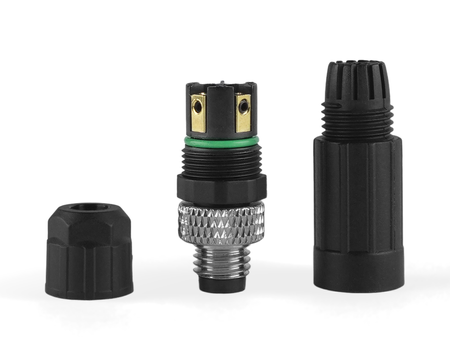

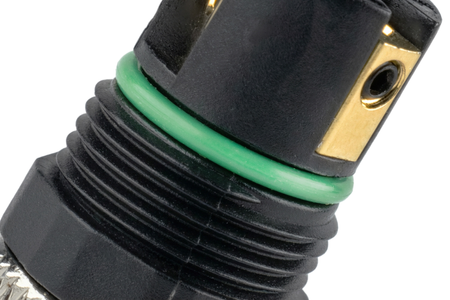

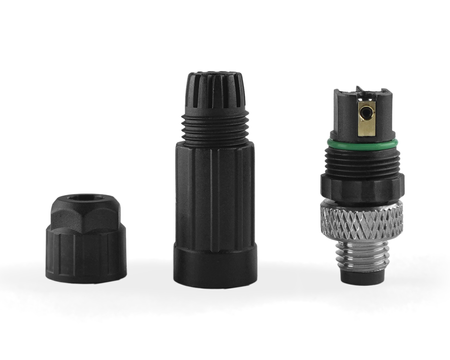

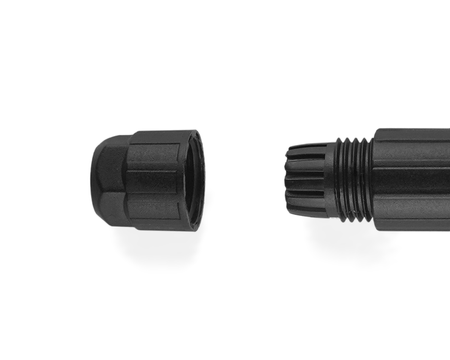

M8 3-pin male straight connector for field wiring onto a cable – plug (male connector), A-coded, with screw terminals. The wires are clamped in the terminals with hex socket screws, no soldering needed – a hex key is included with the connector. The connector takes cables with a diameter of 3.5–5 mm. The cable exits the connector along its axis.
Application
The M8 3-pin plug mates with an A-coded M8 3-pin socket – for example a device socket or a cable ending in a socket. The pin assignment is the same as in M8 sensors.
The connector is made to IEC 61076-2-104 (A-coded), so it also fits other brands' A-coded M8 sockets.
Pin assignment – M8 3-pin, plug
| Pin | Function in the sensor | Wire colour |
|---|---|---|
| 1 | supply + (L+) | brown (BN) |
| 3 | supply 0 V (L−) | blue (BU) |
| 4 | output | black (BK) |
View of the contact side. The pin assignment and wire colours comply with IEC 60947-5-2, the standard used for connecting proximity sensors of different brands – Nexotec sensors and cables follow it too. In other devices, the pin functions are defined in their documentation.
Installation and operating conditions
Cable: diameter 3.5–5 mm, conductors 0.14–0.5 mm². Connection: screw terminals. The wires are clamped in the terminals with hex socket screws – a hex key is included with the connector. Coupling nut tightening torque: 0.4 Nm. The connector achieves IP67 when plugged in and with the coupling nut tightened. Operating temperature: −40…+85 °C.
Technical data
- Connector: M8, 3 pins, A-coded, plug (male), straight
- Dimensions: length 47.4 mm, diameter 12.3 mm
- Connection: screw terminals, conductors 0.14–0.5 mm², cable 3.5–5 mm
- Rated voltage: 60 V AC/DC
- Rated impulse voltage: 1500 V
- Rated current: max. 4 A (40 °C)
- Degree of protection: IP67 (when tightened)
- Operating temperature: −40…+85 °C
- Mating cycles: at least 100
- Materials: PA housing, NBR seal, gold-plated copper contacts, nickel-plated copper metal parts
- Shielding: none
- Connector standard: IEC 61076-2-104

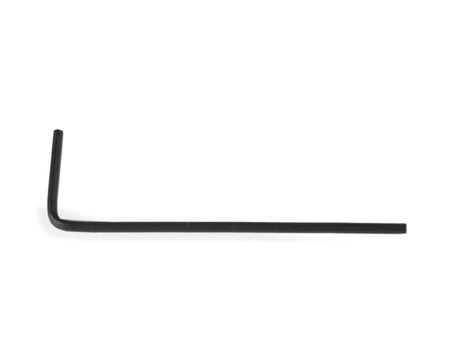

- Included: hex key for the terminal screws
Frequently asked questions
Does the connector need soldering?
No. The wires are screwed into the screw terminals.
Are any tools needed for installation?
Only a hex key for the terminal screws – it is included with the connector.
Which cable fits the M8 connector?
A cable with a diameter of 3.5–5 mm and conductors 0.14–0.5 mm².
How do I connect a sensor to the M8 3-pin connector?
According to IEC 60947-5-2: pin 1 – supply + (L+), pin 3 – supply 0 V (L−), pin 4 – output.
Is it suitable for an NPN sensor?
Yes. The pin assignment is the same for PNP and NPN sensors.
Is the connector sealed?
Yes – IP67, once the connector is plugged in and the coupling nut is tightened.
Is the connector shielded?
No, it is an unshielded connector.
How many times can the connector be mated?
The connector withstands at least 100 mating cycles.
What other versions are available?
M8 3-pin connectors are also available as: female straight (P8-3S); male right-angle (P8-3MR); female right-angle (P8-3R).
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
P8-3MS
Producer code
5907367842111
Warranty
1. Connector / Design Parameters
Connection thread
M8
Encoding
A
Number of contacts
3
Connector type
Male
Screening
No
Connector housing type
Straight
Number of mating cycles (plugging)
≥ 100
Tightening torque
0,4 Nm
2. Materials
Housing material
PA
Seal material
NBR
Contacts
Gold-plated copper
Metal parts
Nickel-plated copper
3. Electrical Parameters
Rated voltage
60 V AC/DC
Rated impulse voltage
1500 V
Rated current (40 °C)
max. 4 A
Insulation resistance
≥ 100 MΩ
Contact resistance
≤ 5 mΩ
4. Connection and Wiring
Cable outlet
3,5-5 mm
Connection method
Screw terminals
Connection cable diameter
0,14-0,5 mm²
4. Working Conditions and Protection
Operating temperature range
−40…+85 °C
Protection category
IP67 (EN 60529)
UL 94 (flammability rating according to UL 94)
HB
5. Standards and Compliance
Manufacturing standard
IEC 61076-2-104
Certification
CE
RoHS
6. Weight and Logistics Information
Net weight
8 g
7. Business / System Data
Condition
New
24-month warranty
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
