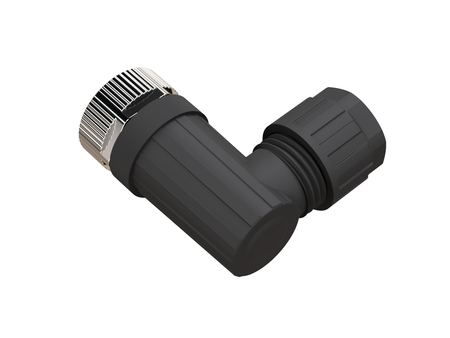

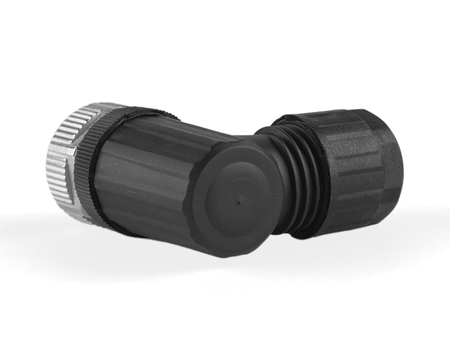

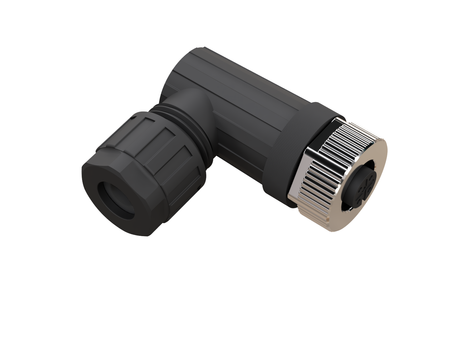

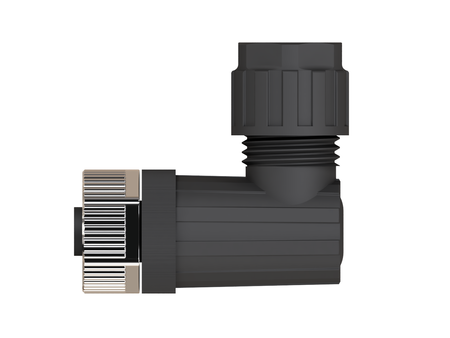

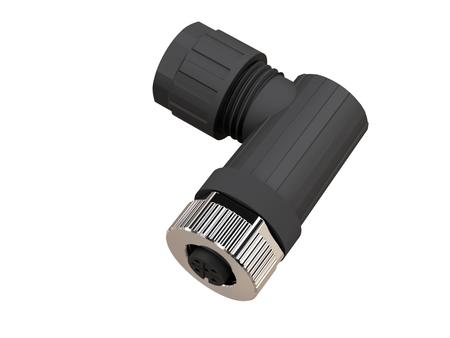

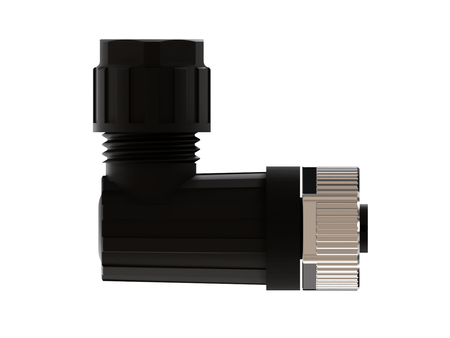

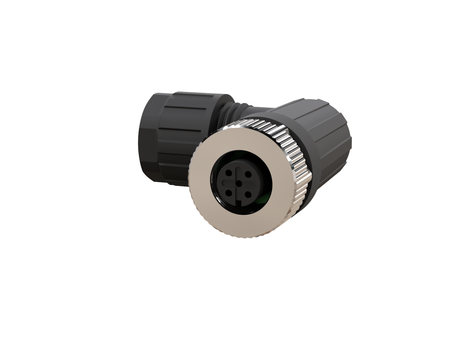

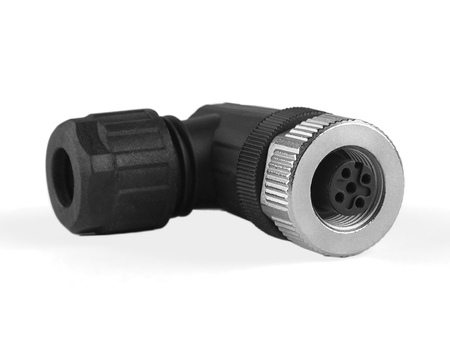

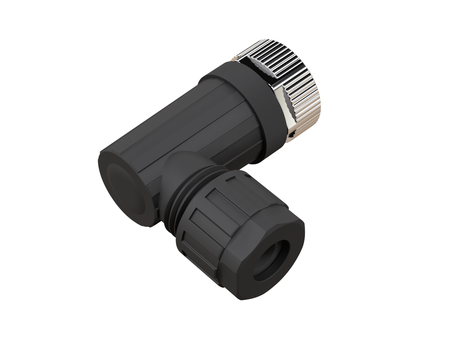

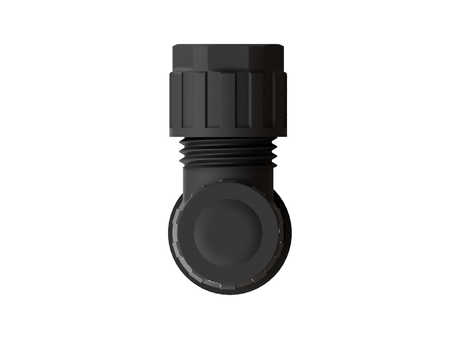

M12 5-Pin Female Right-Angle Connector – for industrial sensors and automation systems
Symbol:
F12-5R
Our bestseller
M12 5-Pin Female Right-Angle Connector – for industrial sensors and automation systems
- ● M12 thread, 5 contacts, A-coded
- ● Female connector, angled housing
- ● Screw terminals – wire it on site, no soldering
- ● For 4–6 mm cable, conductor up to 1.5 mm²
- ● 60 V AC/DC, max. 4 A, IP67
- ● Operating range −40…+85 °C, PA housing, NBR seal
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
Safety and product resources

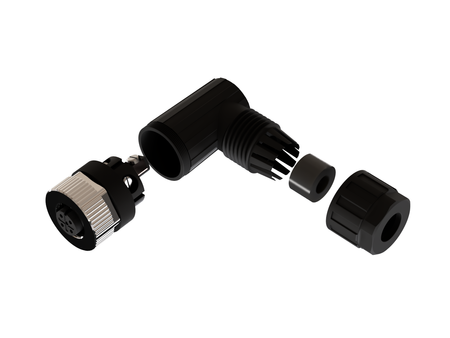

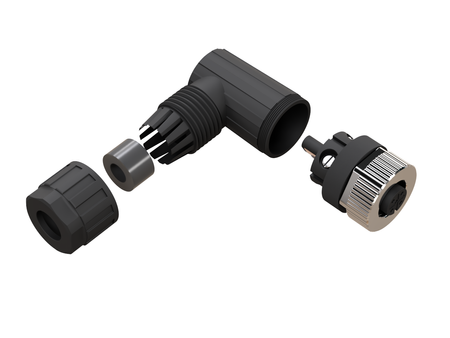

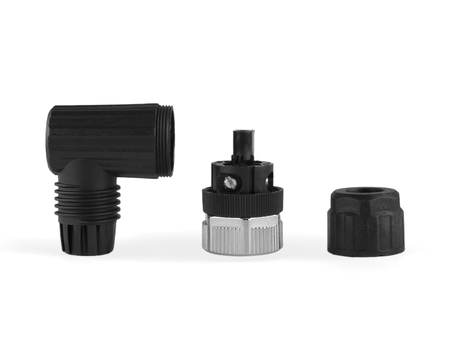

M12 5-pin female right-angle connector for field wiring onto a cable – socket (female connector), A-coded, with screw terminals. The wires are screwed into the terminals, no soldering needed, and the connector takes cables with a diameter of 4–6 mm. The cable exits the connector at 90°.
Application
The A-coded M12 5-pin socket mates with an A-coded M12 4- or 5-pin plug – including sensors, but also other automation devices with this type of connector.
Suitable for M12 sensors with a 4- or 5-pin plug and a PNP or NPN output – with one output or with two outputs, NO and NC (NO output on pin 4, NC on pin 2). The socket screws onto the sensor's plug.
With a sensor that has a 4-pin plug, including Nexotec M12 sensors, nothing is connected to the fifth pin of the connector, and it does not interfere with connecting the sensor.
The connector is made to IEC 61076-2-101 (A-coded), so it also fits other brands' sensors and devices with an A-coded M12 plug.

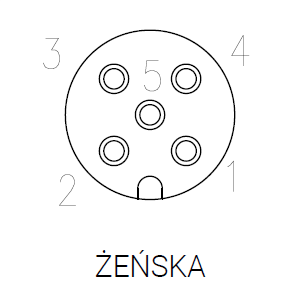

Pin assignment – M12 5-pin, socket
| Pin | Function in the sensor | Wire colour |
|---|---|---|
| 1 | supply + (L+) | brown (BN) |
| 2 | second output (NC) | white (WH) |
| 3 | supply 0 V (L−) | blue (BU) |
| 4 | output (NO) | black (BK) |
| 5 | not used with a 4-pin sensor plug | – |
View of the contact side. The pin assignment and wire colours comply with IEC 60947-5-2, the standard used for connecting proximity sensors of different brands – Nexotec sensors and cables follow it too. In other devices, the pin functions are defined in their documentation.
Pin 5: Nexotec sensors have no fifth pin. 5-pin connectors are used, among other things, with shielded cables and cables with an earth conductor – in 5-core cables, pin 5 usually has a green-yellow wire (GN/YE). The function of pin 5 is defined by the device to which the cable is connected.
Installation and operating conditions
Cable: diameter 4–6 mm, conductors up to 1.5 mm². Connection: screw terminals. The wires are clamped with slotted screws (flat-blade screwdriver). Coupling nut tightening torque: 0.6 Nm. The connector achieves IP67 when plugged in and with the coupling nut tightened. Operating temperature: −40…+85 °C.
Technical data
- Connector: M12, 5 pins, A-coded, socket (female), right-angle 90°

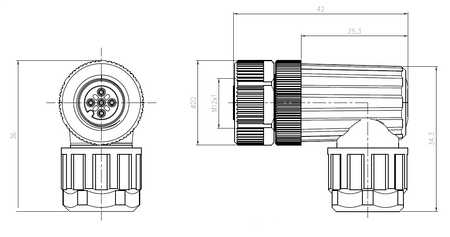

- Dimensions: length 42 mm, height 36 mm
- Connection: screw terminals, conductors up to 1.5 mm², cable 4–6 mm
- Rated voltage: 60 V AC/DC
- Rated impulse voltage: 1500 V
- Rated current: max. 4 A (40 °C)
- Degree of protection: IP67 (when tightened)
- Operating temperature: −40…+85 °C
- Mating cycles: at least 100

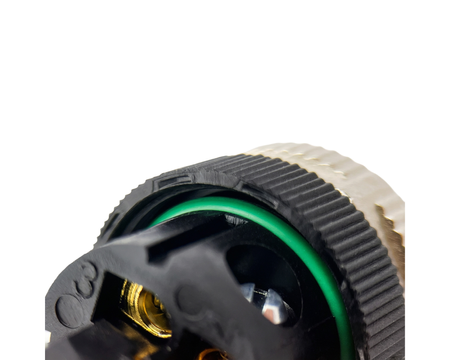

- Materials: PA housing, NBR seal, gold-plated copper contacts, nickel-plated copper metal parts
- Shielding: none
- Connector standard: IEC 61076-2-101
Frequently asked questions
Does the connector need soldering?
No. The wires are screwed into the screw terminals.
Are any tools needed for installation?
Yes – a flat-blade screwdriver. The wires are clamped in the terminals with slotted screws.
Which cable fits the M12 connector?
A cable with a diameter of 4–6 mm and conductors up to 1.5 mm².
How do I connect a sensor to the M12 5-pin connector?
According to IEC 60947-5-2: pin 1 – supply + (L+), pin 2 – second output (NC), pin 3 – supply 0 V (L−), pin 4 – output (NO). Pin 5 remains unconnected.
Is it suitable for an NPN sensor?
Yes. The pin assignment is the same for PNP and NPN sensors.
Is the connector sealed?
Yes – IP67, once the connector is plugged in and the coupling nut is tightened.
Is the connector shielded?
No, it is an unshielded connector.
Does the 5-pin socket fit a sensor with a 4-pin plug?
Yes. Nothing is connected to the fifth pin of the connector, and it does not interfere with connecting the sensor.
Why is the 5-pin connector rated at 60 V and the 4-pin version at 250 V?
IEC 61076-2-101 specifies this voltage for A-coded M12 connectors with five contacts; the 3- and 4-pin versions are rated at 250 V AC/DC.
How many times can the connector be mated?
The connector withstands at least 100 mating cycles.
What other versions are available?
M12 5-pin connectors are also available as: female straight (F12-5S); male straight (F12-5MS); male right-angle (F12-5MR).
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
F12-5R
Producer code
5907367841978
Warranty
1. Connector / Design Parameters
Connection thread
M12
Encoding
A
Number of contacts
5
Connector type
Female
Screening
No
Connector housing type
Angled
Number of mating cycles (plugging)
≥ 100
Tightening torque
0,6 Nm
2. Materials
Housing material
PA
Seal material
NBR
Contacts
Gold-plated copper
Metal parts
Nickel-plated copper
3. Electrical Parameters
Rated voltage
60 V AC/DC
Rated impulse voltage
1500 V
Rated current (40 °C)
max. 4 A
Insulation resistance
≥ 100 MΩ
Contact resistance
≤ 5 mΩ
4. Connection and Wiring
Cable outlet
4-6 mm
Connection method
Screw terminals
Connection cable diameter
max. 1,5 mm²
4. Working Conditions and Protection
Operating temperature range
−40…+85 °C
Protection category
IP67 (EN 60529)
UL 94 (flammability rating according to UL 94)
HB
5. Standards and Compliance
Manufacturing standard
IEC 61076-2-101
Certification
CE
RoHS
6. Weight and Logistics Information
Net weight
25 g
7. Business / System Data
Condition
New
24-month warranty
