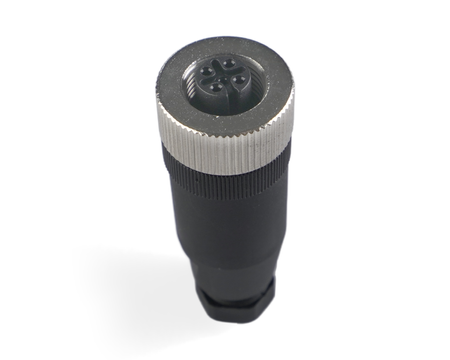

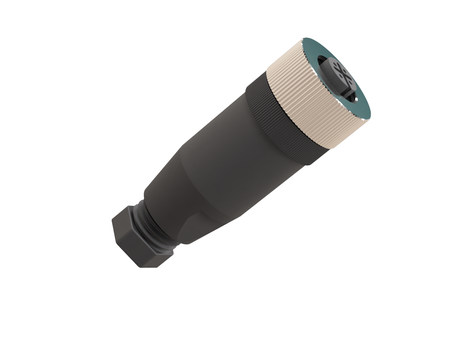

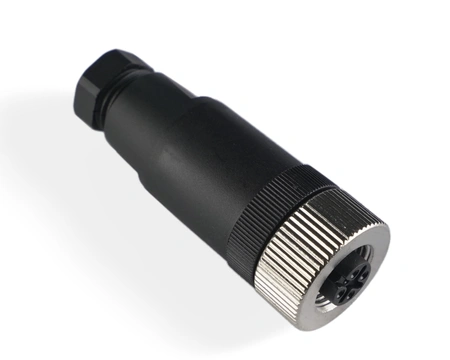

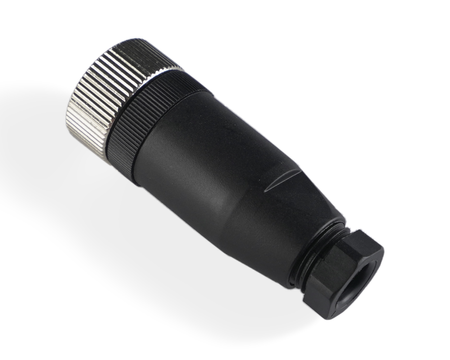

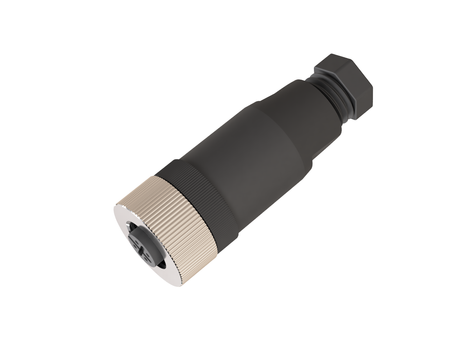

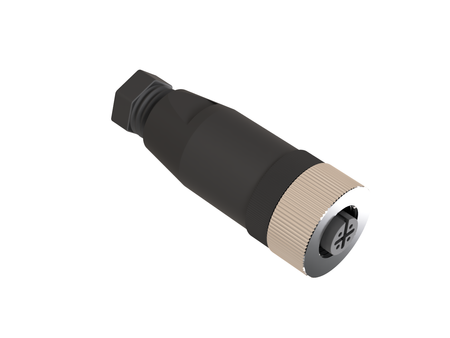

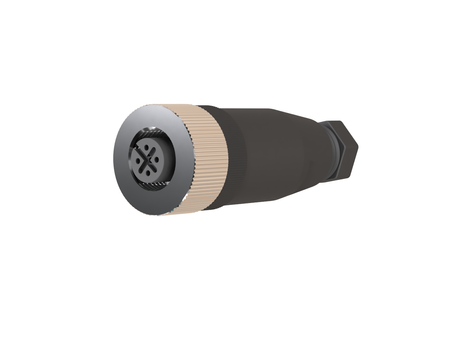

M12 4-Pin Female Straight Connector – for industrial sensors and automation systems
Symbol:
F12-4S
Our bestseller
M12 4-Pin Female Straight Connector – for industrial sensors and automation systems
- • Connector for industrial sensors
- • For automation and control systems
- • Stable operation in industrial installations
- • Used in machines and equipment
- • Suitable for production line applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
The M12 connector is used in industrial automation systems and control applications, designed for connecting sensors and industrial devices.
It is widely used in industrial installations, automation systems, machines and production lines.
The connector ensures stable and durable connections in demanding industrial environments.
Key features of the connector:
- Connector type: M12
- Number of pins: 4
- Version: female
- Design: straight
- Application: industrial automation and control systems
- Compatibility: industrial sensors and automation devices

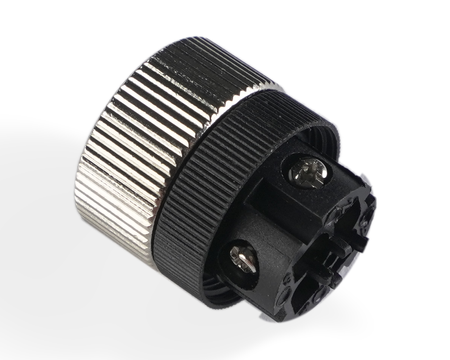

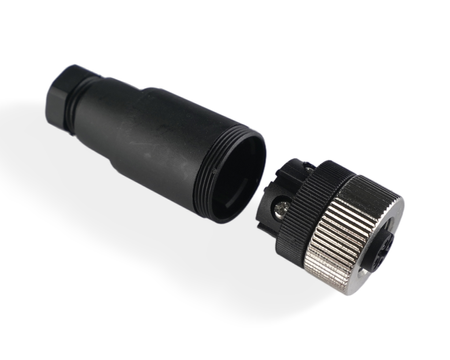

Wires are connected using screw terminals, ensuring a secure and durable connection in industrial installations.
The connector is a reliable solution for industrial automation and control systems.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
F12-4S
Producer code
5907367840414
1. Parametry złącza / konstrukcyjne
Connection thread
M12
Encoding
A
Number of contacts
4
Connector type
Female
Screening
No
Connector housing type
Straight
Number of mating cycles (plugging)
≥ 100
Tightening torque
0,6 Nm
2. Materiały
Connector housing material
PA
Seal material
NBR
Contacts
Gold-plated copper
Metal parts
Nickel-plated copper
3. Parametry elektryczne
Rated voltage
250V AC/DC
Rated impulse voltage
2500 V
Rated current (40°C)
max. 4 A
Insulation resistance
≥ 100 MΩ
Contact resistance
≤ 5 mΩ
4. Podłączenie i okablowanie
Cable outlet
4-6 mm
Connection method
Screw terminals
Connection cable diameter
maks. 1,5 mm²
5. Warunki pracy i ochrona
Operating temperature range
−40…+85 °C
Protection category
IP67 (EN 60529)
UL 94 (flammability rating according to UL 94)
HB
6. Normy i zgodność
Manufacturing standard
IEC 61076-2-101
Certification
CE
RoHS
7. Waga i dane logistyczne
Net weight
23
Dane handlowe / systemowe
Condition
New
Manufacturer's warranty for 2 years
