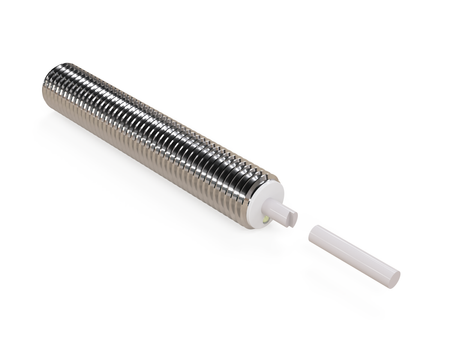

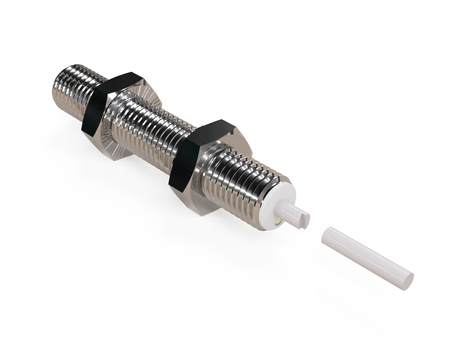

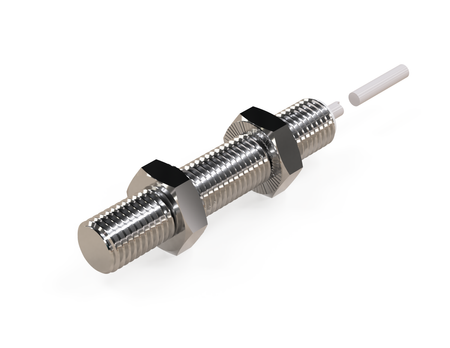

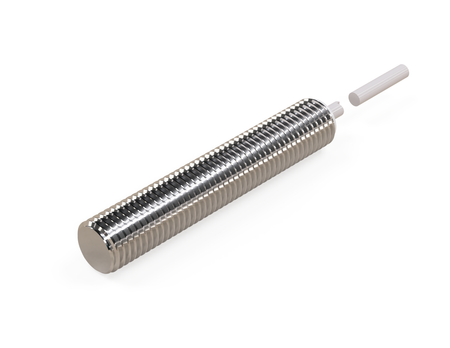

An inductive sensor NMF08343 with a stainless steel sensing face offers excellent resistance to impacts, high temperatures, metal fragments, chemical exposure, and intensive industrial operation.
Thanks to their compact construction and rugged metal housing, M8 sensors provide flexible mounting options across various industrial automation applications., The short Ø8 x 45 mm length enables installation in shallow working spaces and confined areas.
Technical specification:
Diameter: M8, standard diameter of inductive sensors
Length: 45 mm, tandard housing length used in industrial inductive sensors
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
Switching function: NO, output activated when an object is detected
Cable length: 3 m
Supply voltage: DC 10-30V, stable operation in DC-powered automation applications
Applications
They enhance quality control through reliable part presence detection and inspection processes.
Delivers reliable performance in high-speed and demanding industrial machining environments.
Ensures synchronization of components in production and packaging lines.
Used in robotic systems for precise position monitoring of components.
Detects position in industrial material handling and conveyor systems.
Features & Benefits
High signal repeatability in serial production processes.
Reliable detection of workpiece and tool positions.
High response speed in packaging lines.
High positioning accuracy of components in robotic systems.
Stable operation in machines with high cyclic loads.
When to choose this model
Suitable for standard OEM machines requiring durable and maintenance-free sensing technology.
Integrated into material handling, conveyor, and machine automation systems.
Performs effectively in standard industrial installations and automated production systems.
A universal all-metal sensor solution for most industrial installations requiring durability, wear resistance, and dependable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
3 m
Cable diameter
⌀ 3 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08343
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
