● M8 with high mechanical resistance and long service life
● For small working and service spaces
● Reliable range for typical applications
● High strength industrial design
● Cable version – for demanding environments
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

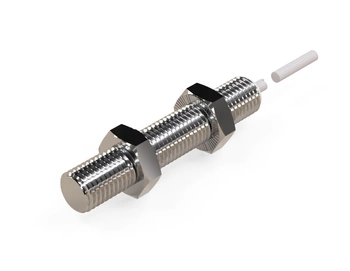

A professional inductive sensor NMF08341 with a stainless steel sensing face is perfectly suited for industrial applications requiring maximum durability, protection, and operational reliability.
The M8 model provides convenient installation in areas with restricted access and limited mounting space, offering long-term reliability in demanding applications., The slim Ø8 x 45 mm design enables mounting inside tight equipment housings and restricted installation areas.
Technical specification:
Diameter: M8, stable construction designed for continuous industrial operation
Length: 45 mm, universal dimensions suitable for a wide range of industrial applications
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, stable operating characteristics when installed in metal surfaces
Switching function: NO, normally open (NO) switching state in idle condition
Cable length: 3 m
Supply voltage: DC 10-30V, stable operation in DC-powered automation applications
Applications
They monitor component presence in industrial conveyor and material handling systems.
Used in automated material feeding and handling systems.
Used in packaging conveyor and material handling systems.
Supports the automation of pick-and-place processes.
Used in OEM machine automation and control systems.
Features & Benefits
Precise detection of metal components in assembly processes.
High detection accuracy in machining environments.
High response speed in packaging lines.
Resistance to frequent operating cycles and micro-vibrations.
Long service life in continuous operation.
When to choose this model
Provides an excellent balance between compact dimensions, robust construction, and high operational performance.
Suitable for various industries requiring durable and versatile metal detection technology.
Suitable for a broad range of OEM applications and custom industrial machinery.
A universal all-metal sensor solution for most industrial installations requiring durability, wear resistance, and dependable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
3 m
Cable diameter
⌀ 3 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08341
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
