● M18 with high mechanical strength and resistance
● Extended construction for stable mounting
● Sensor for extended distance operation
● Resistant to welding splashes
● Plug-in version – performs in harsh conditions
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

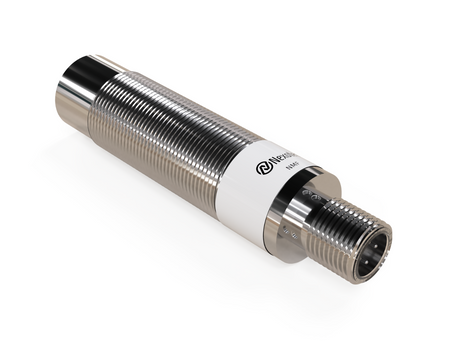

An all-metal inductive sensor NMF18153 with a stainless steel sensing face is a robust component for modern industrial automation, smart manufacturing systems, and heavy-duty applications.
The M18 all-metal inductive sensor is a robust solution for industrial automation applications requiring exceptional durability, mechanical strength, and reliable long-term performance., Ø18 x 79 mm sensors provide an excellent balance between compact design and increased mechanical resistance.
Technical specification:
Diameter: M18, reinforced construction for reliable operation in harsh industrial conditions
Length: 79 mm, larger threaded mounting surface for secure installation
Sensing range: 10 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Non-flush mounting, requires clearance from surrounding metal mounting surfaces
Switching function: NO, output activated when an object is detected
Cable length: n/d
Supply voltage: DC 10-30V, stable operation in DC-powered automation applications
Applications
They are used in assembly processes to verify the correct positioning and seating of parts.
Monitors machining processes in CNC machining centers.
Delivers reliable performance in high-speed packaging and processing environments.
Monitors production cycles in automated manufacturing lines.
Integrated into machine safety systems and interlock applications.
Features & Benefits
Designed for continuous production and automated manufacturing systems.
Reliable detection of workpiece and tool positions.
High response speed in packaging lines.
High positioning accuracy of components in robotic systems.
Reliable performance in safety and control systems.
When to choose this model
Designed for heavy-duty industrial environments where maximum durability and stable performance are required.
Ideal for applications where extended lifetime and resistance to mechanical wear are critical.
Suitable for operation in dusty environments, vibration-prone areas, and harsh production conditions.
Provides stable and repeatable detection performance in applications requiring maximum reliability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
10 mm
Mounting
Non-flush mounting
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.6 ms
Switching frequency
300 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø18 x 79 mm
Sensor length
79 mm
Electrical connection
Connection type
Connector
Connector size
M12
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF18153
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
