● M12 for operation in harsh industrial environments
● Reduced-size housing that saves space
● Sensor for long-range applications
● Reinforced full metal construction
● Plug-in version – precise in demanding applications
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

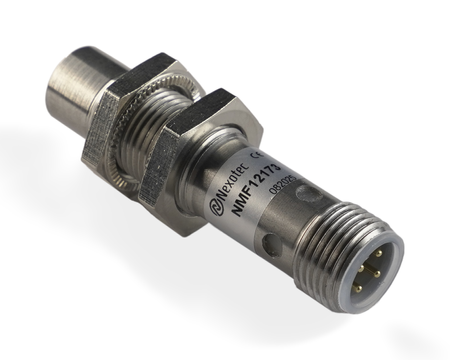

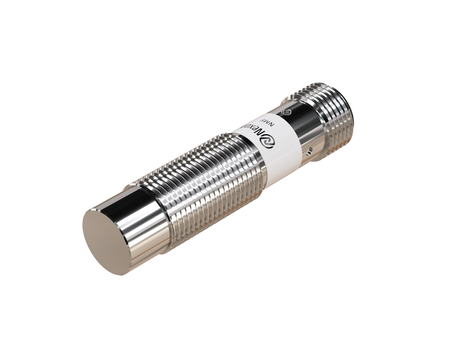

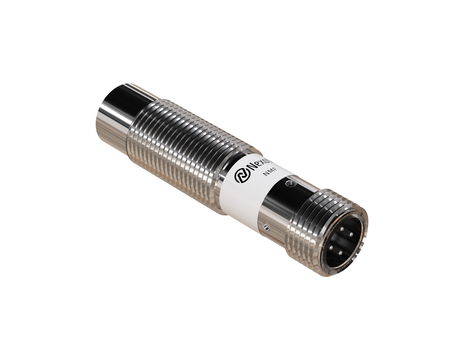

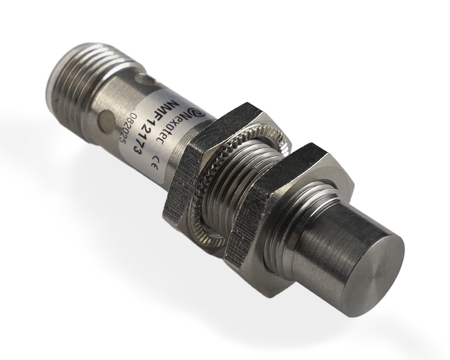

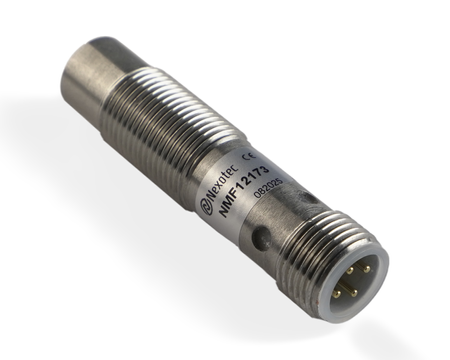

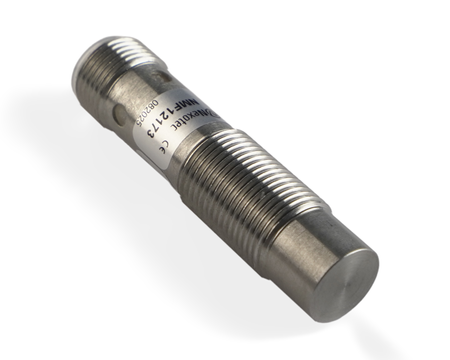

An all-metal inductive sensor NMF12173 with a stainless steel face is the ideal choice for automation applications where reliability, repeatability, and resistance to mechanical damage are critical.
This M12 sensor is an essential component of modern industrial detection systems, offering reliable operation and increased resistance to harsh working conditions. The Ø12 x 50 mm size enables secure and stable fastening in various industrial applications.
Technical specification:
Diameter: M12, increased sensing area for improved detection performance
Length: 50 mm, stable mechanical construction for reliable operation
Sensing range: 6 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Non-flush mounting, requires clearance from surrounding metal mounting surfaces
Switching function: NO, standard operating logic used in inductive sensors
Cable length: n/d
Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
Cable-connected sensors are widely used in automotive production lines for reliable metal object detection and component presence detection.
Supports the automation of cutting, milling, and machining processes.
Integrated into packaging forming and sealing machines.
Detects the presence of components within robotic work zones.
Supports both high-volume production and custom manufacturing applications.
Features & Benefits
High reliability in automated automotive production lines.
High detection accuracy in machining environments.
Precise synchronization of production processes.
Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
Reliable performance in safety and control systems.
When to choose this model
Used in manufacturing automation, logistics systems, and industrial material handling applications.
Performs reliably in 24/7 production lines and high-duty-cycle automation systems.
Used in applications where resistance to impacts, abrasion, and intensive operation is critical.
Suitable for medium-sized machines and complex automation equipment.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
6 mm
Mounting
Non-flush mounting
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.2 ms
Switching frequency
1 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES

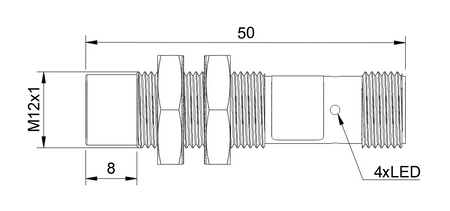

Dimensions
Ø12 x 50 mm
Sensor length
50 mm
Electrical connection
Connection type
Connector
Connector size
M12
Number of pins
4
Number of wires
4
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NMF12173
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
14 g
Weight in kg
0,027
24-month warranty
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
