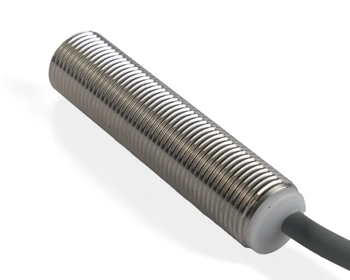

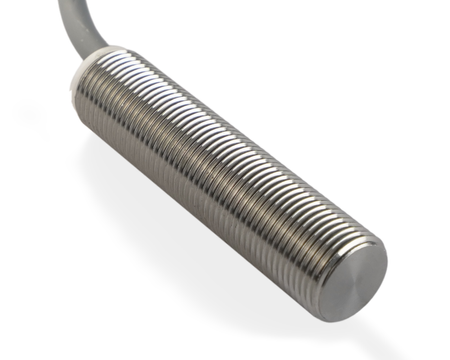

A stainless steel inductive sensor NMF12341 delivers reliable detection performance in industrial automation, process control, machine monitoring, and heavy-duty production systems.
The M12 model ensures reliable operation in production facilities and industrial control applications exposed to intensive use and harsh environmental conditions. The Ø12 x 50 mm format enables easy integration with standard mounting brackets and sensor holders.
Technical specification:
Diameter: M12, increased sensing area for improved detection performance
Length: 50 mm, easy integration with standard mounting systems and fixtures
Sensing range: 4 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
Switching function: NO, normally open (NO) switching state in idle condition
Cable length: 3 m
Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
They ensure precise component position monitoring in automotive assembly lines.
Used in CNC machines for precise position monitoring of workpieces and cutting tools.
Monitors the operation of labeling and dispensing machines.
Monitors production cycles in automated manufacturing lines.
Used in industrial machinery for precise position monitoring of moving components.
Features & Benefits
High signal repeatability in serial production processes.
Compatibility with standard industrial control systems.
Easy integration with dosing and labeling machines.
High positioning accuracy of components in robotic systems.
Resistance to electromagnetic interference.
When to choose this model
Suitable for industrial environments with moderate to challenging operating conditions.
Designed for continuous operation in demanding industrial environments.
Used in applications where resistance to impacts, abrasion, and intensive operation is critical.
Ideal for multi-point detection systems installed in demanding industrial environments.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
4 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.2 ms
Switching frequency
1 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES

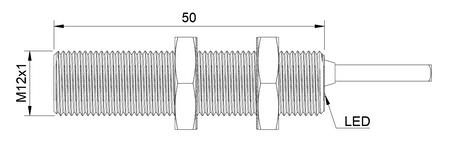

Dimensions
Ø12 x 50 mm
Sensor length
50 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
3 m
Cable diameter
⌀ 4 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NMF12341
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
71 g
Weight in kg
0,084
24-month warranty
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
