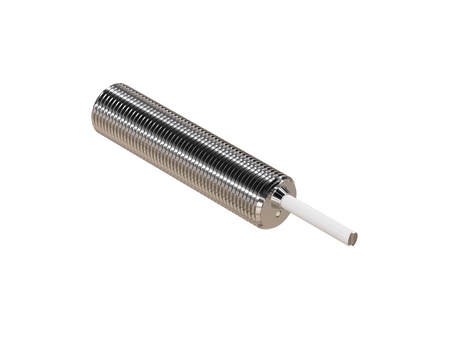

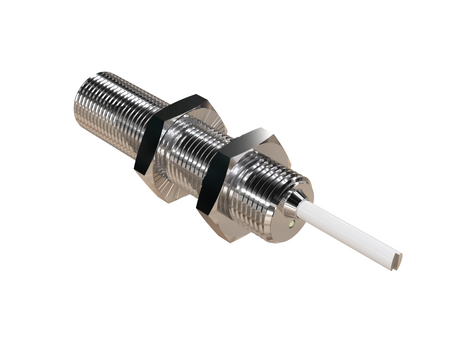

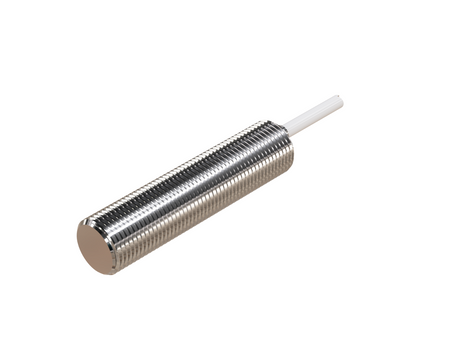

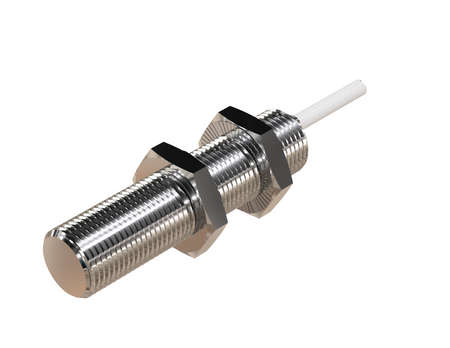

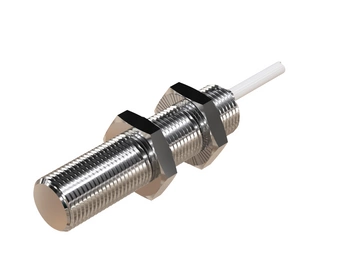

An all-metal inductive sensor NMF12301 with a stainless steel sensing face is a robust component for modern industrial automation, smart manufacturing systems, and heavy-duty applications.
The industrial M12 sensor is part of a product range developed for modern manufacturing and automation installations requiring reliable and wear-resistant components. Thanks to its diameter, Ø12 x 50 mm allows easy adaptation to different machine designs and mounting structures.
Technical specification:
Diameter: M12, stable and reliable operation in demanding industrial environments
Length: 50 mm, universal dimensions suitable for a wide range of industrial applications
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, reduced lateral detection field for precise sensing performance
Switching function: NO, normally open (NO) switching state in idle condition
Cable length: 3 m
Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
They ensure precise component position monitoring in automotive assembly lines.
Supports the automation of cutting, milling, and machining processes.
Detects metal objects and components in packaging systems.
Supports synchronization between robots and industrial machines.
Delivers reliable performance in demanding industrial environments requiring high operational reliability.
Features & Benefits
Resistance to vibration and intensive industrial operation.
Fast response in dynamic machining processes.
Reliable operation in automated packaging systems.
Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
Stable operation in machines with high cyclic loads.
When to choose this model
Designed for production systems with higher operating loads and increased automation requirements.
Suitable for mid-range OEM machines requiring robust and reliable sensor technology.
Ideal for upgrading existing industrial systems with a more durable all-metal sensor solution.
Designed for environments with increased production intensity and continuous machine operation.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
600 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø12 x 50 mm
Sensor length
50 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
3 m
Cable diameter
⌀ 4 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NMF12301
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
71 g
Weight in kg
0,084
24-month warranty
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
