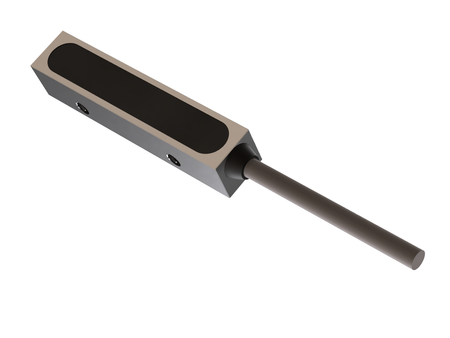

Inductive sensor square Q8 length 40 mm length 40 mm cable 5m PNP NO & NC Sn = 3 mm sensing center
Symbol:
NIQ08556
Inductive sensor square Q8 length 40 mm length 40 mm cable 5m PNP NO & NC Sn = 3 mm sensing center
- NIQ08556
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIQ08556
Producer code
5907367802771
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Q8
Switching distance
3 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO & NC
Response time
0,2ms
Switching frequency
1kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Mechanical data
Housing shape
Kwadratowy
Housing material
Nickel-plated brass
Material active face
PBT
LED display
TAK

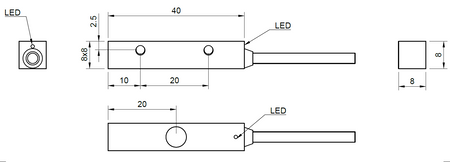

Dimensions
8 x 8 x 40
Sensor length
40 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
5 m
Short-circuit protection
TAK
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Kod producenta
NIQ08556
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
