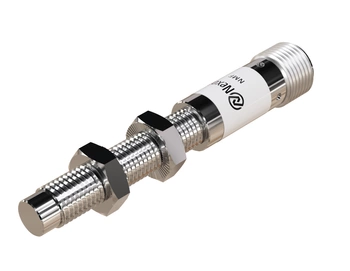

An all-metal inductive sensor NMF08253 with a stainless steel sensing face is a high-performance industrial automation component designed for exceptional mechanical strength, long service life, and reliable operation in demanding environments.
Thanks to their small diameter and rugged housing, M8 sensors can be installed in hard-to-reach areas and compact machine designs without compromising durability., Ø8 x 70 mm sensors feature a small form factor that enables installation in space-limited applications.
Technical specification:
Diameter: M8, stable construction designed for continuous industrial operation
Length: 70 mm, improved resistance to vibration, shock, and mechanical stress
Sensing range: 3,5 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Non-flush mounting, full exposure of the sensing area for maximum detection performance
Switching function: NO, standard operating logic used in inductive sensors
Cable length: n/d
Supply voltage: DC 10-30V, stable operation in DC-powered automation applications
Applications
They are used in assembly processes to verify the correct positioning and seating of parts.
Supports the automation of cutting, milling, and machining processes.
Detects product position during packaging processes.
Used in robotic axis positioning and motion control systems.
Monitors the position of components in special-purpose machines.
Features & Benefits
Precise detection of metal components in assembly processes.
Resistance to coolants, oils, and industrial contaminants.
Stable detection in high-throughput production processes.
High positioning accuracy of components in robotic systems.
High resistance to harsh industrial conditions.
When to choose this model
Designed for stable and precise detection of metal components in industrial environments.
Used in standard manufacturing processes, automated assembly lines, and industrial production systems.
Used in assembly lines across multiple industries requiring robust and reliable sensing.
A universal all-metal sensor solution for most industrial installations requiring durability, wear resistance, and dependable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
3.5 mm
Mounting
Non-flush mounting
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.2 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 70 mm
Sensor length
70 mm
Electrical connection
Connection type
Connector
Connector size
M12
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08253
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
