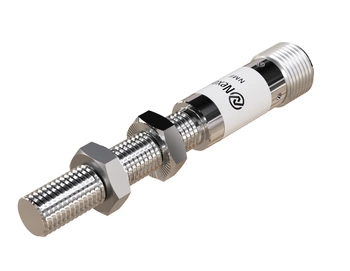

A stainless steel all-metal inductive sensor NMF08243 is engineered for extended service life in harsh industrial environments exposed to impacts, contamination, and extreme operating conditions.
The M8 housing has been optimized for reliable operation in space-constrained installation environments exposed to vibration, contamination, and mechanical stress., The slim Ø8 x 70 mm design enables mounting inside tight equipment housings and restricted installation areas.
Technical specification:
Diameter: M8, an optimal balance between sensor size and detection range
Length: 70 mm, extended housing with increased mechanical rigidity
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
Switching function: NO, normally open (NO) switching state in idle condition
Cable length: n/d
Supply voltage: DC 10-30V, compatibility with PLC control systems and industrial automation networks
Applications
They are widely used in robotic assembly cells and automated manufacturing workstations.
Used in automated material feeding and handling systems.
Used in packaging conveyor and material handling systems.
Monitors production cycles in automated manufacturing lines.
Integrated into machine safety systems and interlock applications.
Features & Benefits
Resistance to vibration and intensive industrial operation.
High detection accuracy in machining environments.
High response speed in packaging lines.
Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
Versatile application across various types of OEM equipment.
When to choose this model
Ensures easy mechanical integration and reliable installation in various industrial applications.
Provides reliable operation in continuous production processes and multi-shift manufacturing environments.
Used in assembly lines across multiple industries requiring robust and reliable sensing.
Frequently used in production automation systems and industrial control applications.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 70 mm
Sensor length
70 mm
Electrical connection
Connection type
Connector
Connector size
M12
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08243
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
