● M8 with high mechanical resistance and long service life
● Long version for increased working space
● Effective sensing zone in typical conditions
● Full metal design – maximum durability
● Plug-in version – ideal for industrial applications
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

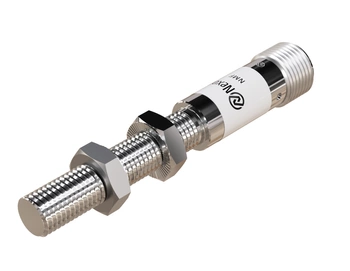

A versatile stainless steel inductive sensor NMF08241 combines rugged all-metal construction, precision detection, long service life, and outstanding resistance to mechanical damage and harsh industrial conditions.
The optimized M8 size enables easy integration into a wide range of industrial automation systems while providing durability, precision detection, and long-term performance., The short Ø8 x 70 mm length enables installation in shallow working spaces and confined areas.
Technical specification:
Diameter: M8, wide compatibility with standard mounting brackets and installation systems
Length: 70 mm, designed for reliable operation in demanding industrial environments
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, stable operating characteristics when installed in metal surfaces
Switching function: NO, signal generated upon detection of a metal target
Cable length: n/d
Supply voltage: DC 10-30V, compatibility with PLC control systems and industrial automation networks
Applications
They ensure precise component position monitoring in automotive assembly lines.
Ensures accurate positioning of machine axes and moving machine components.
Delivers reliable performance in high-speed packaging and processing environments.
Supports synchronization between robots and industrial machines.
Delivers reliable performance in demanding industrial environments requiring high operational reliability.
Features & Benefits
Resistance to vibration and intensive industrial operation.
High mechanical resistance in demanding operating conditions.
High response speed in packaging lines.
Reliable synchronization of machine and robot operation.
Resistance to electromagnetic interference.
When to choose this model
Provides an excellent balance between compact dimensions, robust construction, and high operational performance.
Designed for medium and lightweight industrial loads with high resistance to mechanical wear.
Frequently selected as a reliable standard industrial all-metal sensor for automation applications.
Designed for systems with medium complexity and standard automation requirements.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 70 mm
Sensor length
70 mm
Electrical connection
Connection type
Connector
Connector size
M12
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08241
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
