● Metal M8 dedicated to industrial automation systems
● Long housing for bigger machines
● Sensor with extended detection area
● Durable metal sensing surface
● Plug-in version – moisture and dust resistant
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

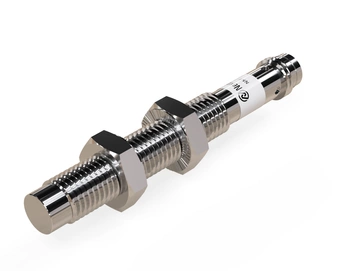

A stainless steel inductive sensor NMF08153 delivers reliable detection performance in industrial automation, process control, machine monitoring, and heavy-duty production systems.
The M8 model provides convenient installation in areas with restricted access and limited mounting space, offering long-term reliability in demanding applications., Ø8 x 60 mm sensors are ideal for applications requiring small, space-efficient sensing solutions.
Technical specification:
Diameter: M8, an optimal balance between sensor size and detection range
Length: 60 mm, extended housing with increased mechanical rigidity
Sensing range: 3,5 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Non-flush mounting, larger lateral sensing field for improved object detection capability
Switching function: NO, normally open (NO) switching state in idle condition
Cable length: n/d
Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
They enhance quality control through reliable part presence detection and inspection processes.
Supports the automation of cutting, milling, and machining processes.
Integrated into packaging forming and sealing machines.
Delivers reliable performance in advanced robotic and automated production environments.
Monitors the position of components in special-purpose machines.
Features & Benefits
Easy integration with robotic systems and PLC control systems.
High detection accuracy in machining environments.
Stable detection in high-throughput production processes.
High positioning accuracy of components in robotic systems.
Easy adaptation to different machine designs.
When to choose this model
Suitable for standard OEM machines requiring durable and maintenance-free sensing technology.
Ideal for industrial machine upgrades and modernization projects requiring a rugged sensor solution.
Provides repeatable metal detection performance over extended operating periods.
A reliable choice for applications requiring long-term stability and resistance to industrial conditions.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
3.5 mm
Mounting
Non-flush mounting
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 60 mm
Sensor length
60 mm
Electrical connection
Connection type
Connector
Connector size
M8
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08153
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
