● Cylindrical M8 made of durable metal, solid and resistant
● Long housing for wide installation setups
● Nominal distance ensuring stable operation
● Extreme wear resistance
● Plug-in version – vibration and shock resistant
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

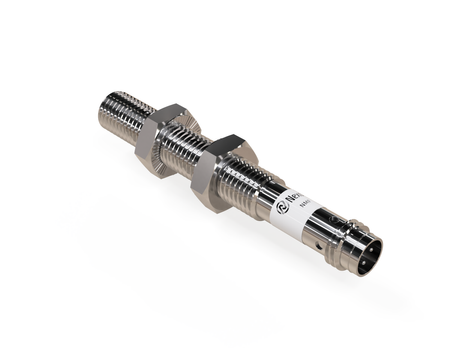

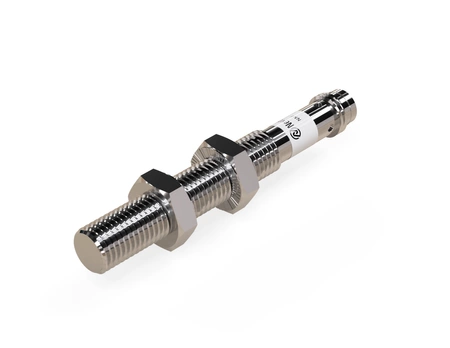

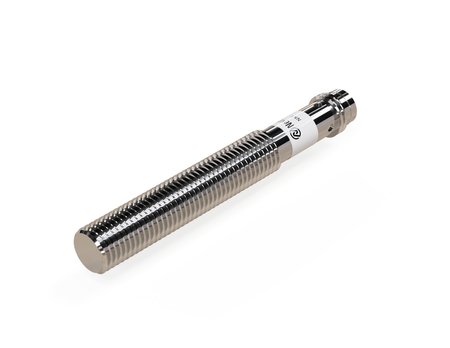

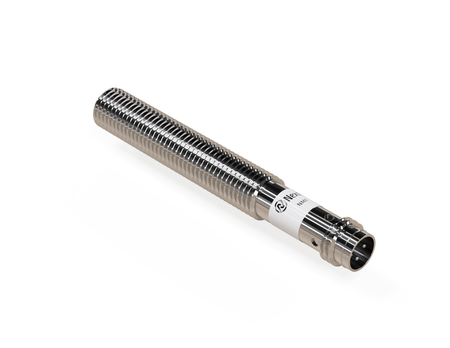

An advanced stainless steel inductive sensor NMF08143 improves the efficiency and reliability of industrial machinery operating in challenging environments with high mechanical stress.
The M8 all-metal design enables reliable use in small and medium-sized industrial automation installations exposed to vibration, contamination, and intensive operation., Ø8 x 60 mm sensors feature a small form factor that enables installation in space-limited applications.
Technical specification:
Diameter: M8, wide compatibility with standard mounting brackets and installation systems
Length: 60 mm, larger threaded mounting surface for secure installation
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
Switching function: NO, normally open (NO) switching state in idle condition
Cable length: n/d
Supply voltage: DC 10-30V, compatibility with PLC control systems and industrial automation networks
Applications
They are integrated into positioning, synchronization, and industrial automation systems.
Monitors machining processes in CNC machining centers.
Monitors the operation of labeling and dispensing machines.
Supports the automation of pick-and-place processes.
Supports both high-volume production and custom manufacturing applications.
Features & Benefits
High signal repeatability in serial production processes.
Stable operation in CNC machines and industrial automation systems.
Resistance to intensive cyclic operation.
High positioning accuracy of components in robotic systems.
High resistance to harsh industrial conditions.
When to choose this model
Universal all-metal sensor solution designed for a wide range of standard industrial automation applications.
Ideal for industrial machine upgrades and modernization projects requiring a rugged sensor solution.
Used in assembly lines across multiple industries requiring robust and reliable sensing.
Frequently used in production automation systems and industrial control applications.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 60 mm
Sensor length
60 mm
Electrical connection
Connection type
Connector
Connector size
M8
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08143
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
