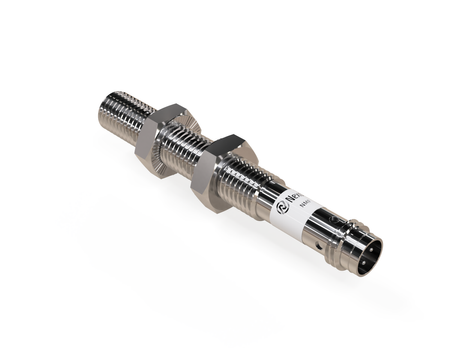

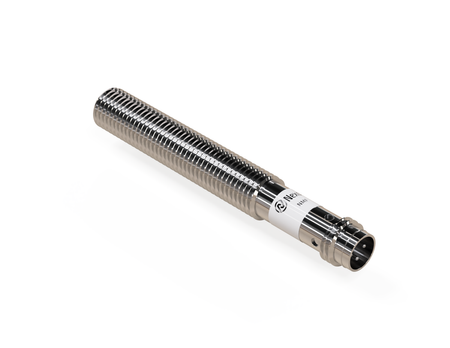

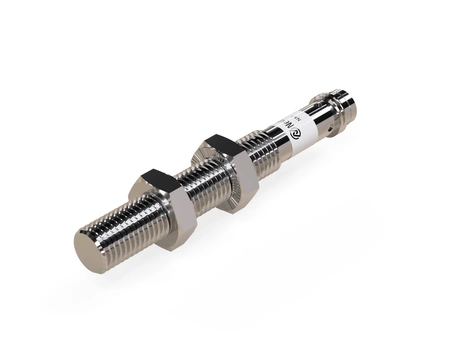

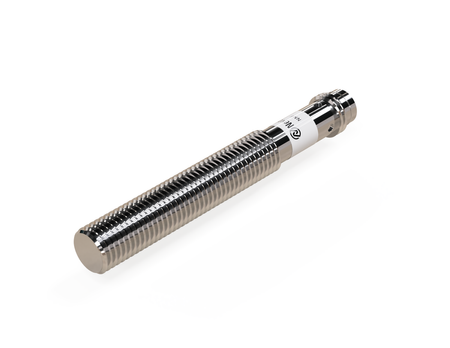

Inductive sensor M8 metal face 60 mm connector M8 PNP NC Sn = 1 mm NF

The specialized NMF08104-NF inductive sensor was developed for precise detection of aluminium components, without reacting to nearby steel parts.

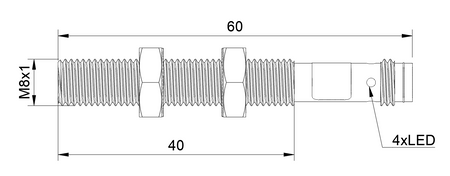

Thanks to the small diameter of M8 sensors, they can be installed in hard-to-reach locations. The compact Ø8 x 60 mm housing makes it easy to place multiple sensors side by side in systems requiring precise control.

Technical specification:

• Diameter: M8, sturdy design ensures reliable continuous operation in industrial conditions
• Length: 60 mm, larger threaded mounting surface provides a more stable fit
• Detection range: 1 mm, wear resistance thanks to the non-contact metal detection method
• Detected materials: Aluminium and other non-ferrous metals (steel ignored), steel and its derivatives are not a detection target, which reduces the number of unwanted signals in aluminium processes
• Correction factor K: K = 1 for aluminium (full rated sensing range), the correction factor K = 1 means that the rated range Sn applies directly to aluminium, without the typical reduction applied to non-ferrous metals
• Housing: Threaded, fastening with lock nuts ensures a stable installation
• Housing material: Stainless steel, increased mechanical strength of the housing ensures a long service life
• Sensor face material: Stainless steel, capable of operating in coolants, oils, and industrial emulsions
• Mounting: Flush mounting, stable operating characteristics around metal surroundings
• Switching function: NC, constant signal monitoring within the control system
• Plug type: M8, M8 or M12 connectors provide a standardized, stable electrical connection
• Supply voltage: DC 10-30V, widely used power supply in control systems

Applications

• Stamping and pressing of sheet metal – Using the inductive proximity sensor supports automation of stamping and pressing processes for aluminium sheet metal.
• Inspection before resistance welding – The NF sensor supports automatic position checking of parts before resistance-welding aluminium components at welding stations.
• Robotic cells – The NF series detection device is used in robotic cells handling aluminium parts in continuous-cycle operation.
• Inspection before pressing – Applications of the NF sensor include confirming the presence of the actual aluminium part before starting the next pressing stage.
• Robotization of aluminium processes – The NF inductive sensor supports the robotization of aluminium processes, providing the automation system with information about the presence or position of the part.

Benefits/Features

• Full rated range for aluminium – the range specified in the documentation reflects the actual detection capability, which makes it easier to design applications involving aluminium parts.
• Stable inspection of the actual part – detection focused on the actual material allows the solution's operation to be better matched to applications involving aluminium and non-ferrous metals.
• Resistant metal sensing face – the metal sensing face provides additional protection when operating near aluminium workpieces, including in environments where chips are present.
• For non-ferrous metals – the solution can be used to inspect parts made of aluminium and other non-ferrous materials, while retaining characteristics aimed at the actual workpiece.
• Detection excluding filings and chips as the actual target – the solution was designed to inspect a solid aluminium part, not to detect fine machining residue.

When to choose this model

• For inspecting parts after cutting – the part-presence sensor will work well for automatically confirming that an aluminium workpiece is in the correct position.
• When aluminium detection must use the full rated range – K = 1 makes it easier to select the appropriate variant for the required distance to the workpiece.
• When you don't need a contaminant detector – choose this model if the device's task is to detect the actual aluminium part, not to check for metallic contaminants.
• For inspecting non-ferrous metal components – choose this model when the automation system must detect actual aluminium parts or other non-ferrous workpieces.
