Inductive sensor M8 Metal face 60 mm connector M8 NPN NO Sn = 3,5 mm
- ● Metal M8 dedicated to industrial automation systems
- ● Long design for wide system layouts
- ● Sn range with extended sensing zone
- ● Long service life in industry
- ● Plug-in version – resistant to dirt and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A stainless steel all-metal inductive sensor NMF08151 is a high-performance solution for manufacturing systems, welding environments, automation equipment, and industrial control applications.

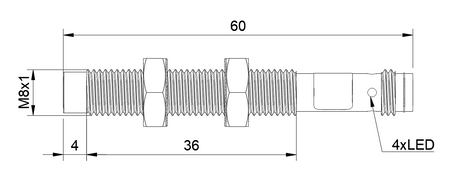

The M8 model provides convenient installation in areas with restricted access and limited mounting space, offering long-term reliability in demanding applications. The Ø8 x 60 mm format allows mounting in areas with moderately restricted accessibility.
Technical specification:
- Diameter: M8, wide compatibility with standard mounting brackets and installation systems
- Length: 60 mm, extended housing with increased mechanical rigidity
- Sensing range: 3,5 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, full exposure of the sensing area for maximum detection performance
- Switching function: NO, signal generated upon detection of a metal target
- Cable length: n/d
- Supply voltage: DC 10-30V, compatibility with PLC control systems and industrial automation networks
Applications
- They ensure precise component position monitoring in automotive assembly lines.
- Supports automatic workpiece clamping and fixture systems.
- Integrated into packaging forming and sealing machines.
- Delivers reliable performance in advanced robotic and automated production environments.
- Supports equipment operating under high-duty cycle conditions.
Features & Benefits
- Precise detection of metal components in assembly processes.
- Fast response in dynamic machining processes.
- Easy integration with dosing and labeling machines.
- Stable operation in dynamic automation environments.
- Reliable performance in safety and control systems.
When to choose this model
- Ensures easy mechanical integration and reliable installation in various industrial applications.
- Designed for medium and lightweight industrial loads with high resistance to mechanical wear.
- Provides repeatable metal detection performance over extended operating periods.
- Suitable for multi-shift operation and continuous industrial workloads.
Connection
The sensor has an NPN output, so connect it with an M8 3-pin connection cable without LEDs. Cables with LEDs (NXOC08261…, NXOC08121…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
