● Extended construction for demanding applications
● Effective sensing zone in typical conditions
● Stable in harsh environments
● Plug-in version – vibration and shock resistant
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

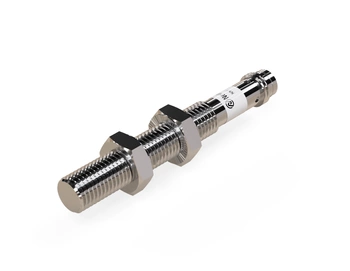

A professional inductive sensor NMF08141 with a stainless steel sensing face is perfectly suited for industrial applications requiring maximum durability, protection, and operational reliability.
M8 all-metal sensors have been developed for applications where space-saving installation, mechanical strength, and reliable performance are essential., Ø8 x 60 mm sensors provide optimal use of available mounting space while maintaining reliable sensing performance.
Technical specification:
Diameter: M8, wide compatibility with standard mounting brackets and installation systems
Length: 60 mm, extended housing with increased mechanical rigidity
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
Switching function: NO, output activated when an object is detected
Cable length: n/d
Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
They are widely used in robotic assembly cells and automated manufacturing workstations.
Used in automated material feeding and handling systems.
Ensures synchronization of components in production and packaging lines.
Monitors production cycles in automated manufacturing lines.
Delivers reliable performance in demanding industrial environments requiring high operational reliability.
Features & Benefits
Resistance to vibration and intensive industrial operation.
Reliable detection of workpiece and tool positions.
High response speed in packaging lines.
High positioning accuracy of components in robotic systems.
Easy adaptation to different machine designs.
When to choose this model
Used in typical production lines, assembly systems, and industrial control applications where reliable metal detection is required.
Provides reliable operation in continuous production processes and multi-shift manufacturing environments.
Frequently selected as a reliable standard industrial all-metal sensor for automation applications.
A universal all-metal sensor solution for most industrial installations requiring durability, wear resistance, and dependable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
700 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 60 mm
Sensor length
60 mm
Electrical connection
Connection type
Connector
Connector size
M8
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08141
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
