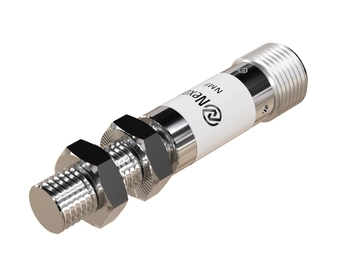

A stainless steel inductive sensor NMF08263 delivers reliable detection performance in industrial automation, process control, machine monitoring, and heavy-duty production systems.
The miniature M8 design simplifies integration into industrial automation systems with limited available space while providing increased resistance to external damage., The compact Ø8 x 53 mm housing simplifies the arrangement of multiple sensors in close proximity.
Technical specification:
Diameter: M8, wide compatibility with standard mounting brackets and installation systems
Length: 53 mm, improved resistance to vibration, shock, and mechanical stress
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, reduced lateral detection field for precise sensing performance
Switching function: NO, signal generated upon detection of a metal target
Cable length: n/d
Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
Cable-connected sensors are widely used in automotive production lines for reliable metal object detection and component presence detection.
Monitors machining processes in CNC machining centers.
Supports the automation of packaging and sorting processes.
Supports synchronization between robots and industrial machines.
Delivers reliable performance in demanding industrial environments requiring high operational reliability.
Features & Benefits
High signal repeatability in serial production processes.
Reliable detection of workpiece and tool positions.
Compact design enabling installation in space-limited applications.
Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
High resistance to harsh industrial conditions.
When to choose this model
Suitable for standard OEM machines requiring durable and maintenance-free sensing technology.
Integrated into material handling, conveyor, and machine automation systems.
Used in assembly lines across multiple industries requiring robust and reliable sensing.
Provides easy replacement, straightforward installation, and compatibility with existing machine designs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 53 mm
Sensor length
53 mm
Electrical connection
Connection type
Connector
Connector size
M12
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08263
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
