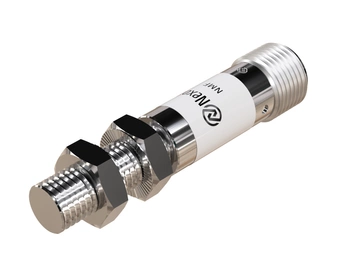

An all-metal inductive sensor NMF08261 with a stainless steel sensing face is a high-performance industrial automation component designed for exceptional mechanical strength, long service life, and reliable operation in demanding environments.
The M8 model provides convenient installation in areas with restricted access and limited mounting space, offering long-term reliability in demanding applications., The optimized Ø8 x 53 mm size combines compact dimensions with simple and efficient installation.
Technical specification:
Diameter: M8, standard diameter of inductive sensors
Length: 53 mm, improved resistance to vibration, shock, and mechanical stress
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
Switching function: NO, signal generated upon detection of a metal target
Cable length: n/d
Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
Cable-connected sensors are widely used in automotive production lines for reliable metal object detection and component presence detection.
Detects workpiece presence before machining operations begin.
Supports automatic packaging machines and automated packing systems.
Used in robotic systems for precise position monitoring of components.
Detects position in industrial material handling and conveyor systems.
Features & Benefits
High reliability in automated automotive production lines.
Fast response in dynamic machining processes.
Easy integration with dosing and labeling machines.
High positioning accuracy of components in robotic systems.
Reliable performance in safety and control systems.
When to choose this model
Frequently integrated with PLC systems and automated machine control solutions.
Ensures stable performance under standard industrial operating conditions.
Ideal for general-purpose industrial automation systems requiring long service life and durability.
Supports quality control processes through consistent and accurate metal component detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 53 mm
Sensor length
53 mm
Electrical connection
Connection type
Connector
Connector size
M12
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08261
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
