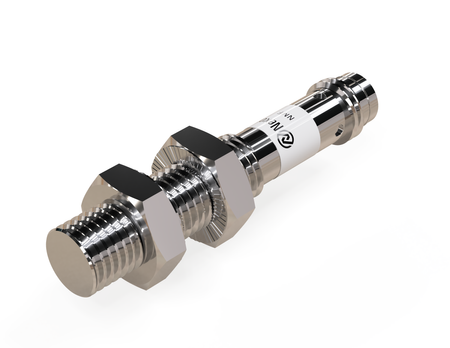

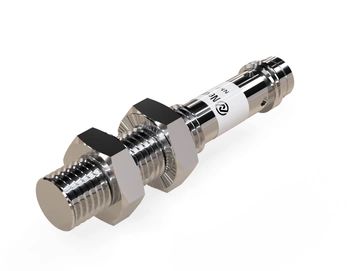

An inductive sensor NMF08163 with a stainless steel sensing face is a proven solution for applications requiring high resistance to abrasion, impact, welding spatter, and mechanical stress.
The M8 all-metal design enables reliable use in small and medium-sized industrial automation installations exposed to vibration, contamination, and intensive operation., Ø8 x 45 mm sensors integrate well into systems with moderate component density and limited installation space.
Technical specification:
Diameter: M8, an optimal balance between sensor size and detection range
Length: 45 mm, universal dimensions suitable for a wide range of industrial applications
Sensing range: 2 mm
Housing: Threaded sensor
Housing material: Stainless steel housing
Sensor face material: Stainless steel housing
Mounting: Flush mounting, reduced lateral detection field for precise sensing performance
Switching function: NO, normally open (NO) switching state in idle condition
Cable length: n/d
Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
They are integrated into positioning, synchronization, and industrial automation systems.
Detects workpiece presence before machining operations begin.
Ensures synchronization of components in production and packaging lines.
Supports synchronization between robots and industrial machines.
Supports equipment operating under high-duty cycle conditions.
Features & Benefits
Resistance to vibration and intensive industrial operation.
Compatibility with standard industrial control systems.
Resistance to intensive cyclic operation.
Reliable synchronization of machine and robot operation.
Stable operation in machines with high cyclic loads.
When to choose this model
Used in typical production lines, assembly systems, and industrial control applications where reliable metal detection is required.
Designed for medium and lightweight industrial loads with high resistance to mechanical wear.
Frequently selected as a reliable standard industrial all-metal sensor for automation applications.
A universal all-metal sensor solution for most industrial installations requiring durability, wear resistance, and dependable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
2 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Connector
Connector size
M8
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NMF08163
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Full-metal inductive sensors provide precise and reliable detection of metal objects, even in demanding industrial conditions. Their resistance to high temperatures, vibration, corrosion and mechanical damage makes them ideal for welding, metalworking and production automation.
