Inductive sensor M8 Metal face 30 mm cable 3m PNP NC Sn = 2 mm
- ● Proximity M8 with a fully metal housing
- ● Reduced-size housing that saves space
- ● Balanced distance for reliable performance
- ● Extreme wear resistance
- ● Cable version – vibration and shock resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

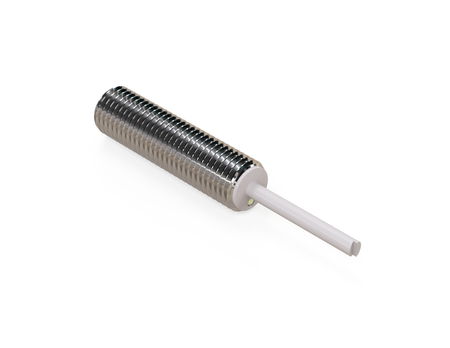

An all-metal inductive sensor NMF08364 with a stainless steel sensing face stands out for its rugged construction, extended lifespan, and exceptional resistance to industrial wear.
Thanks to their small diameter and rugged housing, M8 sensors can be installed in hard-to-reach areas and compact machine designs without compromising durability., Ø8 x 30 mm sensors feature a small form factor that enables installation in space-limited applications.
Technical specification:

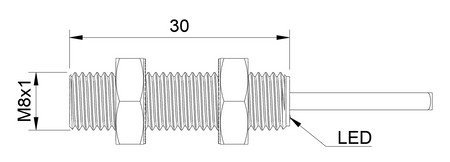

- Diameter: M8, stable construction designed for continuous industrial operation
- Length: 30 mm, stable mechanical construction for reliable operation
- Sensing range: 2 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
- Switching function: NC, used in safety-related applications and monitoring functions
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- They ensure precise component position monitoring in automotive assembly lines.
- Detects workpiece presence before machining operations begin.
- Used in packaging lines for reliable product presence detection.
- Delivers reliable performance in advanced robotic and automated production environments.
- Supports equipment operating under high-duty cycle conditions.
Features & Benefits
- Easy integration with robotic systems and PLC control systems.
- Fast response in dynamic machining processes.
- Reliable operation in automated packaging systems.
- Resistance to frequent operating cycles and micro-vibrations.
- Resistance to electromagnetic interference.
When to choose this model
- Provides an excellent balance between compact dimensions, robust construction, and high operational performance.
- Integrated into material handling, conveyor, and machine automation systems.
- Provides repeatable metal detection performance over extended operating periods.
- A universal all-metal sensor solution for most industrial installations requiring durability, wear resistance, and dependable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
