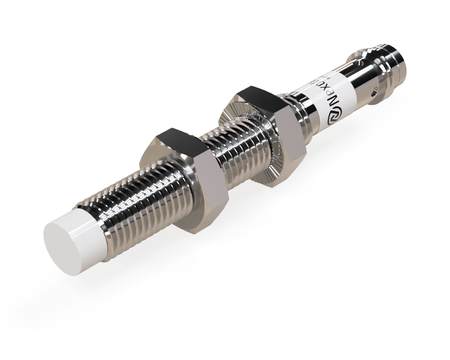

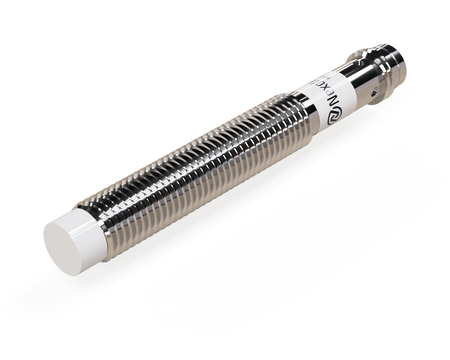

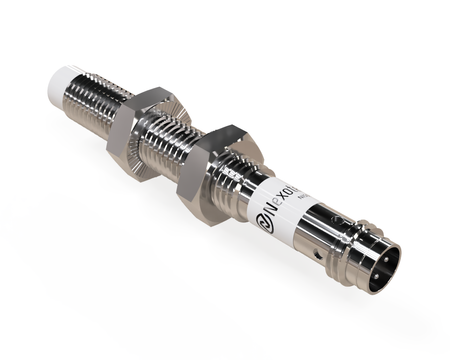

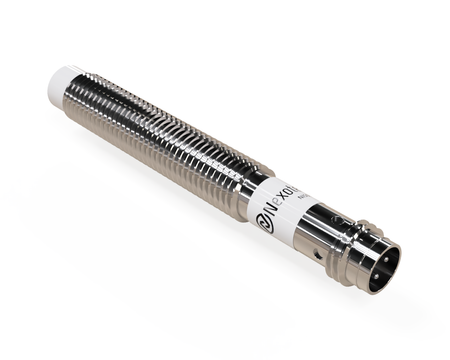

Inductive sensor M8 60 mm connector M8 NPN NC Sn = 4 mm
- ● M8 simplifies component placement in systems
- ● Extended module for extensive assemblies
- ● Sensor for remote installations
- ● Plug-in – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced inductive sensor NIS08532 with a PBT sensing face supports the efficient operation of industrial machines and equipment.

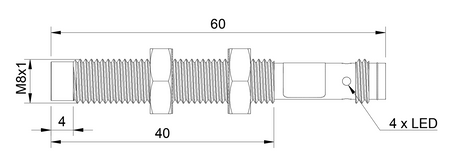

The M8 design allows use in small and medium-sized automation installations. Ø8 x 60 mm dimensions allow easy adaptation to compact installations.
Technical specification:
- Diameter: M8, wide compatibility with mounting brackets
- Length: 60 mm, larger mounting surface for thread connection
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Monitoring of component presence in production transport systems.
- Position control of machine axes and working components.
- Detection of metal elements and components in packaging systems.
- Application in robotic systems for detecting element positions.
- Control of processes in complex mechanical systems.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Stable detection in high-throughput processes
- Stable operation in high-duty cycle machines
When to choose this model
- Suitable for stable detection of metal parts.
- Ensures stable operation under typical industrial conditions.
- Ensures repeatable detection over long periods.
- Suitable for multi-shift operation.
Connection
The sensor has an NPN output, so connect it with an M8 3-pin connection cable without LEDs. Cables with LEDs (NXOC08261…, NXOC08121…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
