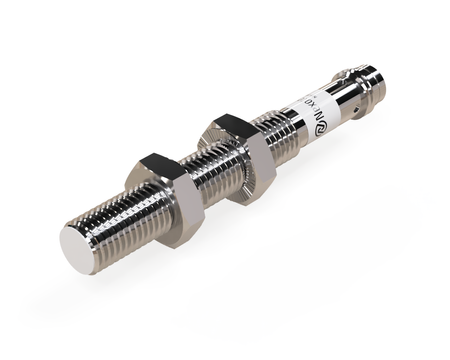

NIS08502 - 1 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm

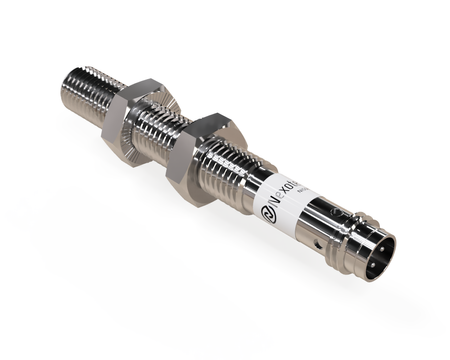

NIS08502 - 2 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm

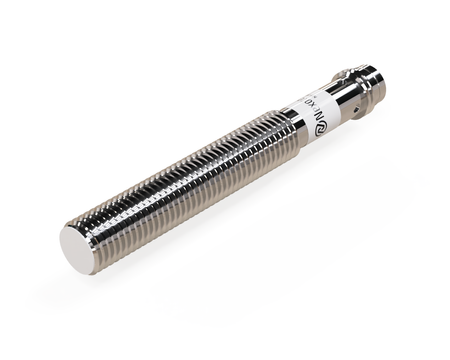

NIS08502 - 3 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm

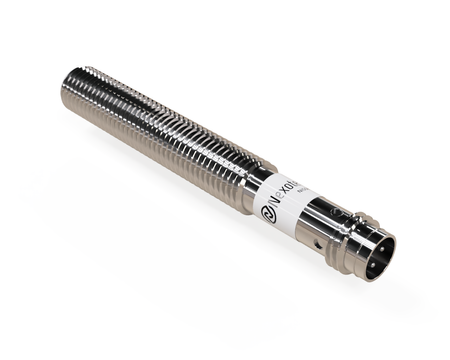

NIS08502 - 4 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm
NIS08502 - 5 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm
NIS08502 - 1 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm
NIS08502 - 2 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm
NIS08502 - 3 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm
NIS08502 - 4 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm
NIS08502 - 5 - Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm
Symbol: NIS08502

Inductive sensor M8 60 mm connector M8 NPN NC Sn = 1 mm

+ Add to compareAdd to shopping list
  • ● M8 allows easy installation
  • ● Long enclosure for expanded applications
  • ● Sensor for minimal detection distance
  • ● Plug-in – fast connection and maintenance
13,54 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Custom product
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Custom product
Shipment
Free and fast delivery from 22,90 €
30 days for free returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.
Files to download

An inductive sensor NIS08502 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.

M8 sensors were designed for applications requiring space-saving solutions. Ø8 x 60 mm dimensions allow easy adaptation to compact installations.

Technical specification:

  • Diameter: M8, wide compatibility with mounting brackets
  • Length: 60 mm, better resistance to vibration and stress
  • Sensing range: 1 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, increased mechanical strength
  • Sensing face material: PBT,
  • Mounting: flush mounting
  • Switching function: NC, opens upon object detection
  • Cable length: n/d
  • Supply voltage: DC 10-30V, protection against typical voltage fluctuations

Applications

  • Detection of elements in automated vehicle production systems.
  • Application in tool change and positioning systems.
  • Application in packaging lines for product presence detection.
  • Support for synchronization of robots and machines.
  • Control of processes in complex mechanical systems.

Features and Benefits

  • Precise detection of metal components in assembly processes
  • Compatibility with standard industrial control systems
  • Resistance to frequent cycles and micro-vibrations
  • Versatile use in different OEM machine types

When to choose this model

  • Used in typical production lines and automation systems.
  • Ensures good mounting compatibility.
  • Ensures repeatable detection over long periods.
  • Used in quality control systems.

Connection

The sensor has an NPN output, so connect it with an M8 3-pin connection cable without LEDs. Cables with LEDs (NXOC08261…, NXOC08121…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.

Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08502
Producer code
5907367810424
Series
NIS08
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M8
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

1 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NC
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

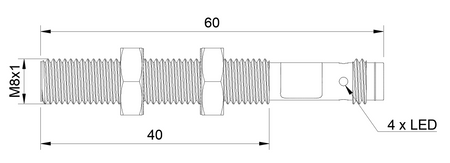

Dimensions
Ø8 x 60 mm
Sensor length
60 mm
Electrical connection
Connection type
Connector
Connector size
M8
Number of pins
3
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS08502
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
12 g
Weight in kg
0,017
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
