Inductive sensor M8 53 mm connector M12 NPN NC Sn = 1 mm
- ● M8 suitable for standard systems
- ● Housing for extensive workspaces
- ● Sensor with short detection field
- ● Plug-in – ideal for industrial applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08702 with a PBT sensing face ensures reliable operation in automation and process control systems.

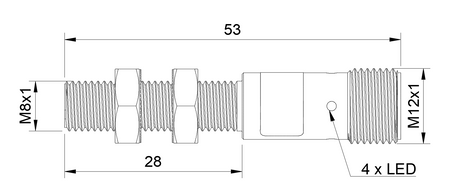

Thanks to their small diameter, M8 sensors can be installed in hard-to-reach places. The Ø8 x 53 mm format allows installation where larger sensors do not fit.
Technical specification:
- Diameter: M8, commonly used in industrial automation
- Length: 53 mm, larger mounting surface for thread connection
- Sensing range: 1 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, resistant to aggressive industrial environments
- Sensing face material: PBT, sensing face material – PBT
- Mounting: flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Detection of elements in automated vehicle production systems.
- Monitoring of processes in machining centers.
- Control of production line synchronization.
- Use in automation of pick & place processes.
- Use in mass and custom production systems.
Features and Benefits
- Resistance to vibrations and intensive operation
- Fast response in dynamic machining processes
- Precise synchronization of production processes
- Fast detection in pick & place processes
- Long service life in continuous operation
When to choose this model
- Good compromise between size and functionality.
- Performs well in continuous operation.
- Often chosen as a standard industrial sensor.
- Ensures good availability and easy replacement.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
