Symbol: NIS08466

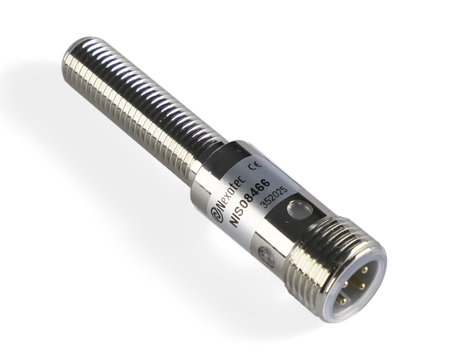

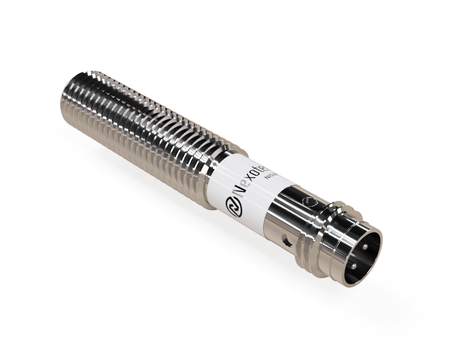

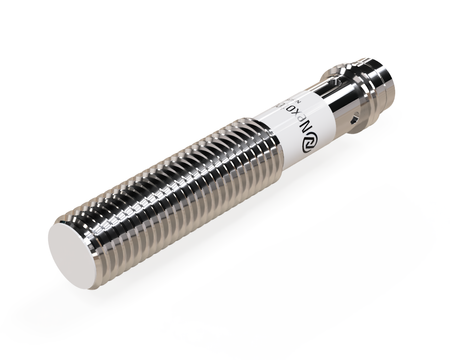

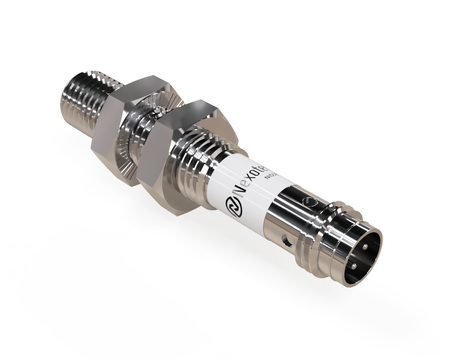

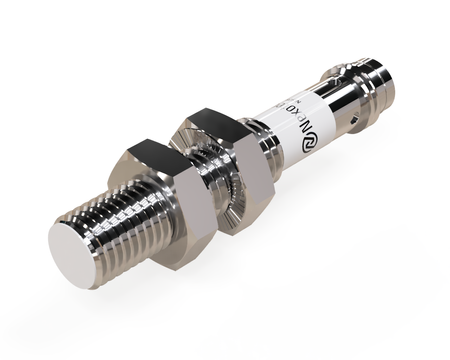

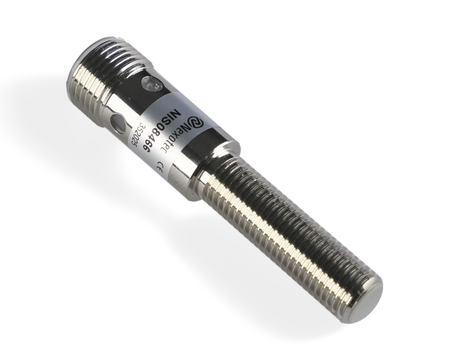

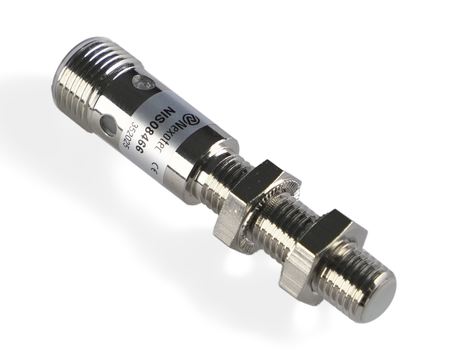

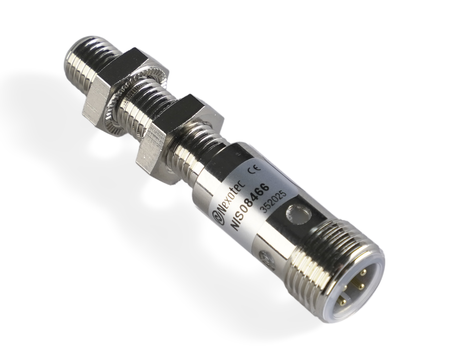

Inductive sensor M8 45 mm connector M8 PNP NO & NC Sn = 4 mm

+ Add to compareAdd to shopping list
  • ● Compact M8 for typical applications
  • ● Shortened design for modular installations
  • ● Sensor with extended range for long-distance detection
  • ● Plug-in – durable in harsh environments

45,80 €

net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Product available in very large quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very large quantities
Shipment
Free and fast delivery from 18,72 €
30 days for free returns
Find out in which store you can check the product and buy it right away
Inductive sensor M8 45 mm connector M8 PNP NO & NC Sn = 4 mm
Inductive sensor M8 45 mm connector M8 PNP NO & NC Sn = 4 mm
one size
Safe shopping
After purchase you will receive pts.
Files to download

NIS08466

An inductive sensor NIS08466 with a Teflon sensing face is a robust component for modern automation systems.

M8 sensors ensure stable operation in limited working space., Ø8 x 45 mm sensors take up little space, supporting dense system designs.

Technical specification:

  • Diameter: M8, commonly used in industrial automation
  • Length: 45 mm, good balance between size and durability
  • Sensing range: 4 mm
  • Housing: Threaded housing sensor
  • Housing material: Nickel-plated brass, used in standard industrial applications
  • Sensing face material: PBT,
  • Mounting: Flush mounting
  • Switching function: NO & NC
  • Cable length: n/d
  • Supply voltage: DC 10-30V, compatible with PLC systems

Applications

  • Monitoring of component presence in production transport systems.
  • Position control of machine axes and working components.
  • Control of labeling and dosing machines.
  • Support for synchronization of robots and machines.
  • Use in actuator and mechanism control systems.

Features and Benefits

  • Precise detection of metal components in assembly processes
  • High detection precision in machining environments
  • Stable detection in high-throughput processes
  • Resistance to frequent cycles and micro-vibrations
  • Reliable operation in safety and control systems

When to choose this model

  • Used in standard OEM machines.
  • Used in standard production processes.
  • Used in systems with moderate operating dynamics.
  • Often used in production automation.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08466
Producer code
5907367810387
Series
NIS08
Warranty
Manufacturer's warranty for 2 years
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M8
Switching distance
4 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO & NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,5ms
Switching frequency
500Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES

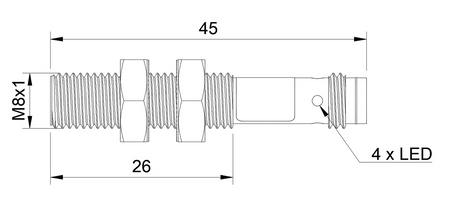

Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Connector
Connector size
M8
Number of pins
4
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS08466
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
