Symbol: NIS08643

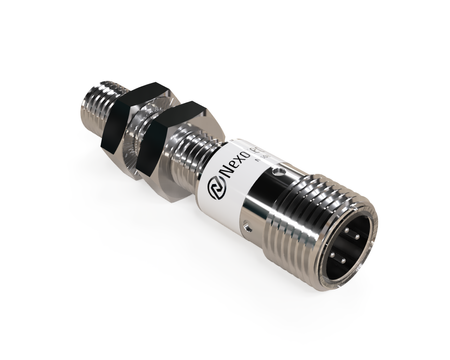

Inductive sensor M8 45 mm connector M12 PNP NO Sn = 3 mm

+ Add to compareAdd to shopping list
  • ● M8 suitable for production lines
  • ● Compact housing for small systems
  • ● Sensor with extended range for long-distance detection
  • ● Plug-in – ready for standard installations
27,58 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Product available in very large quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very large quantities
Shipment
Free and fast delivery from 22,84 €
30 days for free returns
Find out in which store you can check the product and buy it right away
Inductive sensor M8 45 mm connector M12 PNP NO Sn = 3 mm
Inductive sensor M8 45 mm connector M12 PNP NO Sn = 3 mm
one size
Safe shopping
After purchase you will receive pts.
Files to download

An inductive sensor NIS08643 with a PBT sensing face offers high resistance to external factors and intensive operation.

Thanks to reduced dimensions, M8 sensors can be easily integrated into compact control systems. Ø8 x 45 mm sensors can be installed in narrow construction spaces.

Technical specification:

  • Diameter: M8, commonly used in industrial automation
  • Length: 45 mm, stable mechanical construction
  • Sensing range: 3 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, suitable for operation in humidity and contamination
  • Sensing face material: PBT,
  • Mounting: Flush mounting
  • Switching function: NO, used in typical control applications
  • Cable length: n/d
  • Supply voltage: DC 10-30V, commonly used control supply

Applications

  • Use in assembly processes and verification of correct part positioning.
  • Support for automatic clamping systems.
  • Detection of product position in packaging processes.
  • Position control of grippers and robotic actuators.
  • Application in machine safety and interlock systems.

Features and Benefits

  • Signal repeatability in mass production processes
  • High detection precision in machining environments
  • Compatibility with industrial robots and EOAT systems
  • Resistance to electromagnetic interference

When to choose this model

  • Ensures good mounting compatibility.
  • Suitable for multi-industry applications.
  • Ensures repeatable detection over long periods.
  • Ensures good availability and easy replacement.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08643
Producer code
5907367811230
Series
NIS08
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M8
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

3 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.2 ms
Switching frequency
1 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES
Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Connector
Connector size
M12
Number of pins
4
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS08643
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
11 g
Weight in kg
0,016
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
