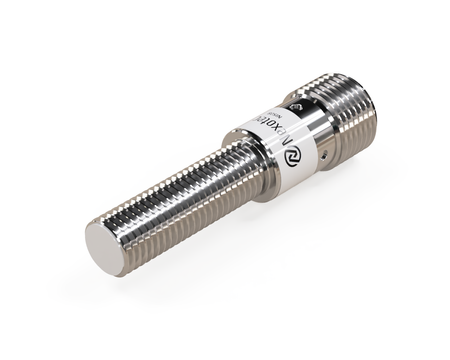

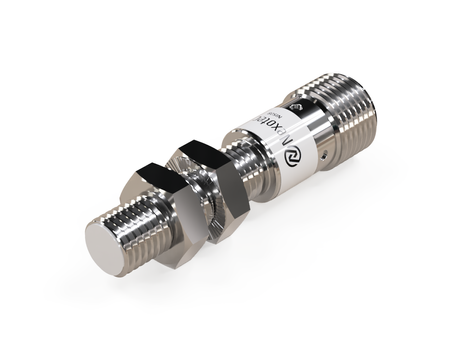

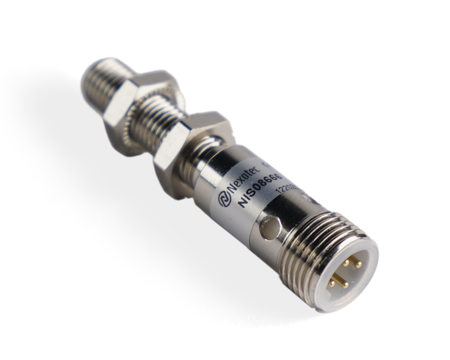

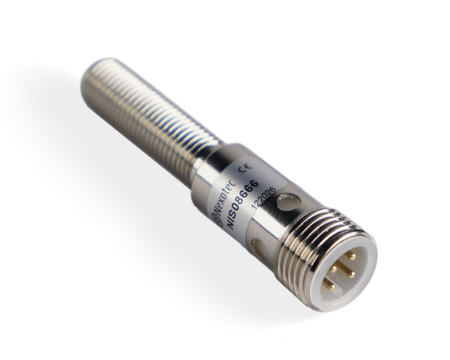

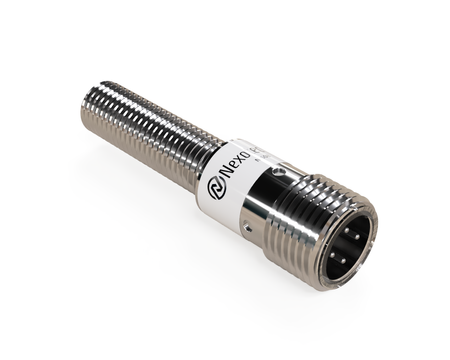

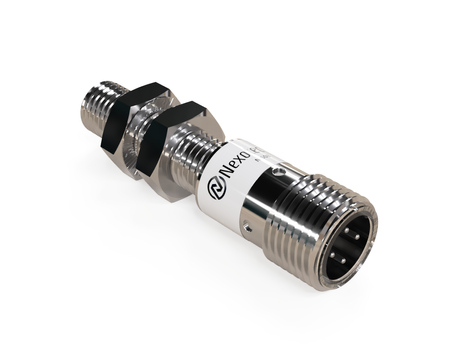

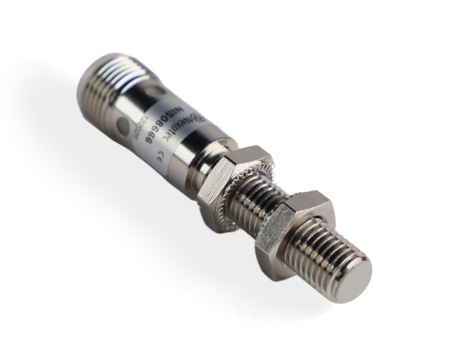

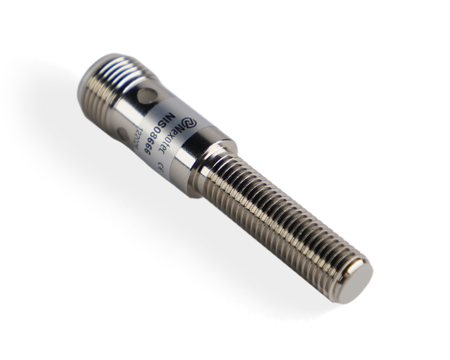

Inductive sensor M8 45 mm connector M12 PNP NO & NC Sn = 4 mm
- ● M8 allows easy installation
- ● Compact housing for tight mounting spaces
- ● Sn distance with extended sensing zone
- ● Plug-in – nickel-plated brass housing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08666 with a PBT sensing face ensures reliable operation in automation and process control systems.

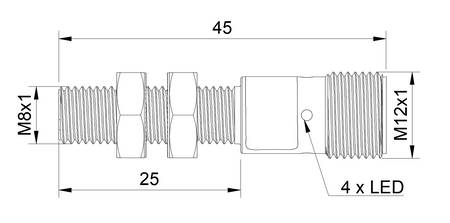

Thanks to their small diameter, M8 sensors can be installed in hard-to-reach places. Ø8 x 45 mm sensors take up little space, supporting dense system designs.
Technical specification:
- Diameter: M8, wide compatibility with mounting brackets
- Length: 45 mm, stable mechanical construction
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, resistant to aggressive industrial environments
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Position control of machine axes and working components.
- Control of production line synchronization.
- Application in robotic systems for detecting element positions.
- Use in actuator and mechanism control systems.
Features and Benefits
- Resistance to vibrations and intensive operation
- High detection precision in machining environments
- Resistance to intensive cyclic operation
- Stable operation in dynamic automation systems
- Stable operation in high-duty cycle machines
When to choose this model
- Used in typical production lines and automation systems.
- Used in transport and assembly systems.
- Used in assembly lines across many industries.
- Suitable for multi-shift operation.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
