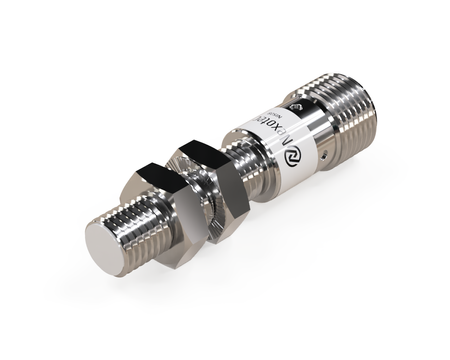

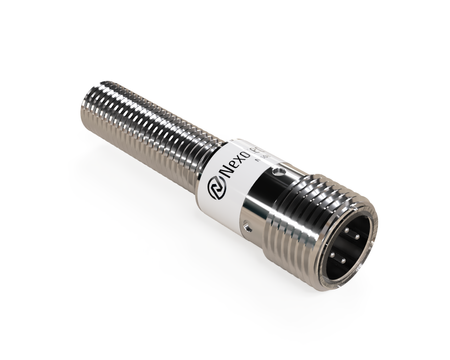

Inductive sensor M8 45 mm connector M12 PNP NO & NC Sn = 3 mm
- ● M8 housing simplifies component arrangement
- ● Compact layout for micro-applications
- ● Sensor with wide operating range
- ● Plug-in – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced inductive sensor NIS08646 with a PBT sensing face supports the efficient operation of industrial machines and equipment.
The small M8 housing allows installation in tight spaces of automation systems. Ø8 x 45 mm is a format that ensures good installation accessibility in limited space.
Technical specification:
- Diameter: M8, commonly used in industrial automation
- Length: 45 mm, easy integration with mounting systems
- Sensing range: 3 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Quality and presence control of elements in production processes.
- Detection of workpieces before machining operations.
- Control of production line synchronization.
- Application in integration of industrial automation systems.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Easy integration with dosing and labeling machines
- High precision positioning of elements in robotic systems
When to choose this model
- Often used in PLC systems and control automation.
- Used in standard production processes.
- Used in systems with moderate operating dynamics.
- Good for applications requiring reliability.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
