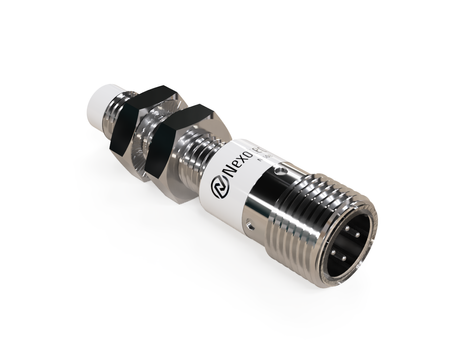

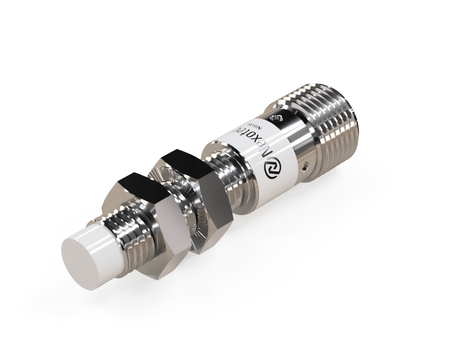

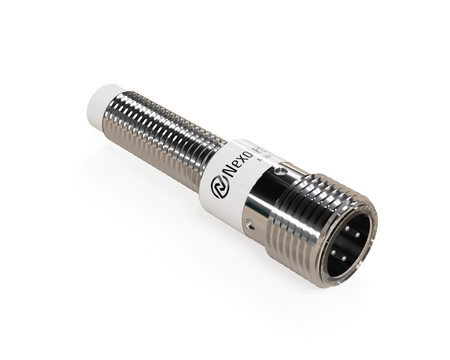

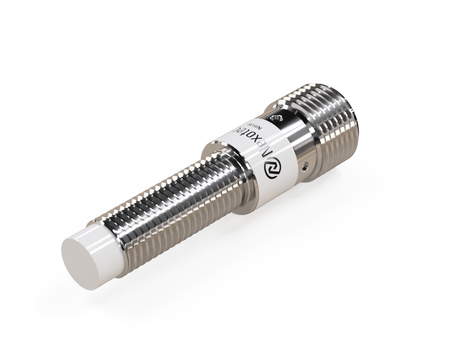

Inductive sensor M8 45 mm connector M12 NPN NO Sn = 6 mm
- ● M8 ideal for standard spaces
- ● Compact housing for tight mounting spaces
- ● Sn distance for greater operating range
- ● Plug-in – easy setup and commissioning
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08651 with a PBT sensing face is a robust component for modern automation systems.
M8 sensors offer an optimal balance of size and functionality in industrial installations. Ø8 x 45 mm sensors are suitable for applications requiring small mounting solutions.

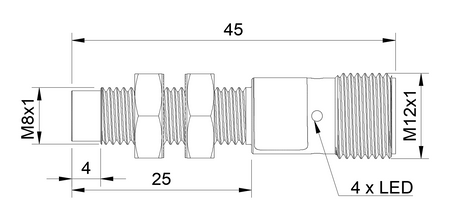

Technical specification:
- Diameter: M8, stable construction for continuous operation
- Length: 45 mm, easy integration with mounting systems
- Sensing range: 6 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, resistant to aggressive industrial environments
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Position control of parts in automotive assembly lines.
- Application in CNC machines for position control of elements and tools.
- Application in packaging transport systems.
- Use in automatic assembly systems.
- Use in actuator and mechanism control systems.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Stable operation in CNC machines and automation systems
- Precise synchronization of production processes
- Stable operation in dynamic automation systems
- High resistance to harsh industrial conditions
When to choose this model
- Good compromise between size and functionality.
- Suitable for multi-industry applications.
- Suitable for a wide range of OEM applications.
- Performs well in standard installations.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
