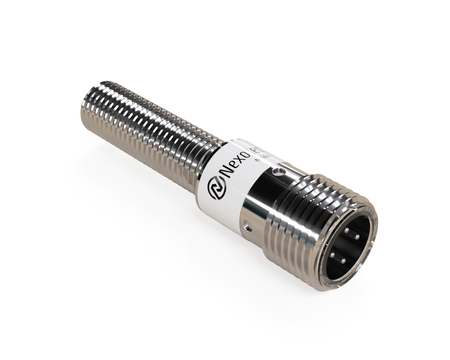

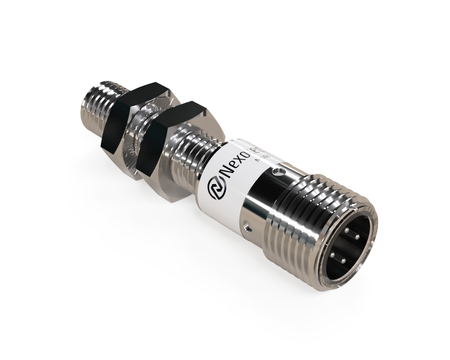

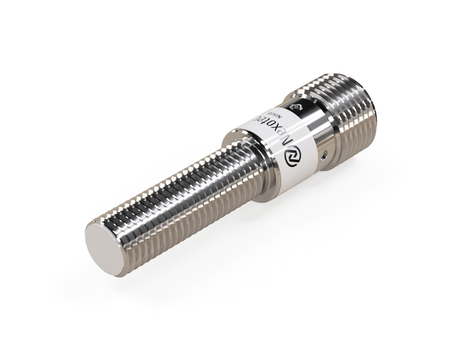

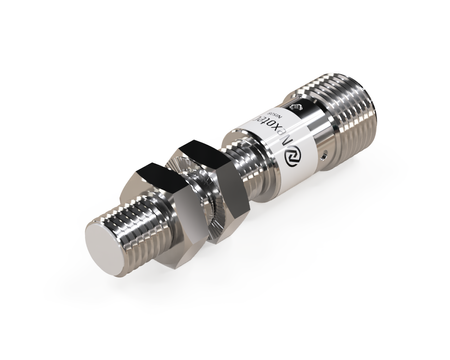

Inductive sensor M8 45 mm connector M12 NPN NO Sn = 4 mm
- ● M8 suitable for standard systems
- ● Compact layout for micro-applications
- ● Sensor with maximum detection zone
- ● Plug-in – quick installation and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08661 with a PBT sensing face is distinguished by its durability and high-quality construction.

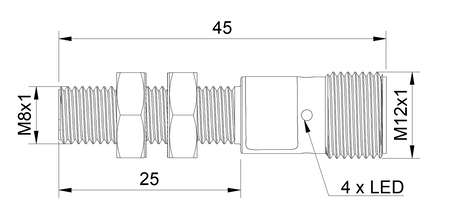

Thanks to reduced dimensions, M8 sensors can be easily integrated into compact control systems. Thanks to its size, Ø8 x 45 mm allows flexible positioning of components.
Technical specification:
- Diameter: M8, commonly used in industrial automation
- Length: 45 mm, good balance between size and durability
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, long sensor lifetime
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Detection of elements in automated vehicle production systems.
- Detection of workpieces before machining operations.
- Detection of metal elements and components in packaging systems.
- Application in robotic systems for detecting element positions.
- Application in OEM machine automation.
Features and Benefits
- Resistance to vibrations and intensive operation
- Stable operation in CNC machines and automation systems
- Stable detection in high-throughput processes
- High precision positioning of elements in robotic systems
- Reliable operation in safety and control systems
When to choose this model
- Good compromise between size and functionality.
- Ensures stable operation under typical industrial conditions.
- Ensures repeatable detection over long periods.
- Used in systems of medium complexity.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
