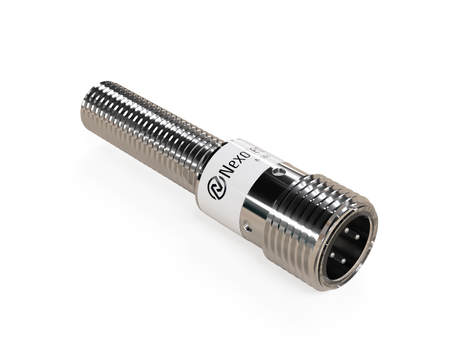

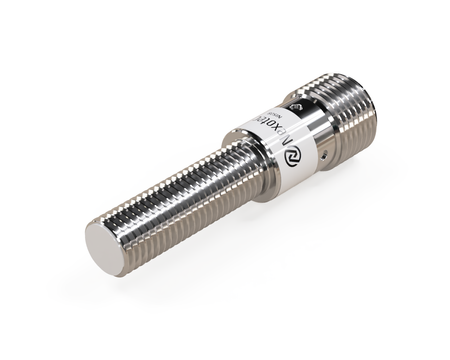

Inductive sensor M8 45 mm connector M12 NPN NO & NC Sn = 3 mm
- ● M8 housing simplifies component placement
- ● Short housing for small installations
- ● Sn distance for long-distance detection
- ● Plug-in – easy setup and commissioning
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08645 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.
The M8 model allows easy installation in compact installations. The Ø8 x 45 mm size enables installation in areas with limited depth.
Technical specification:
- Diameter: M8, commonly used in industrial automation
- Length: 45 mm, stable mechanical construction
- Sensing range: 3 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, increased mechanical strength
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Position control of parts in automotive assembly lines.
- Detection of workpieces in machining fixtures.
- Use in automation of packaging and sorting processes.
- Application in robotic axis positioning systems.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Stable operation in CNC machines and automation systems
- Reliable operation in automated packaging systems
- Fast detection in pick & place processes
- Long service life in continuous operation
When to choose this model
- Good compromise between size and functionality.
- Used in standard production processes.
- Ensures repeatable detection over long periods.
- Often used in production automation.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
