Inductive sensor M8 45 mm connector M12 NPN NC Sn = 4 mm
- ● M8 housing simplifies component placement
- ● Short housing for small installations
- ● Sn distance for greater operating range
- ● Plug-in – convenient installation and operation
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

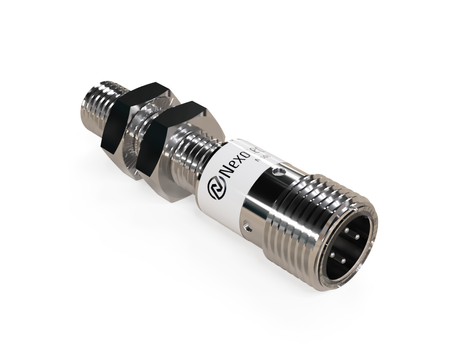

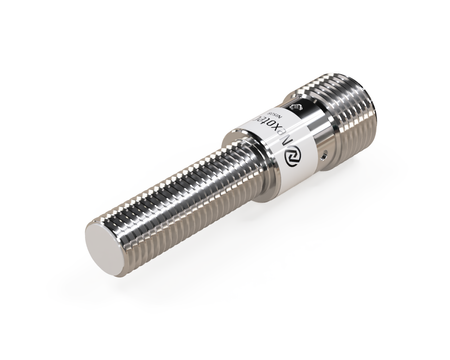

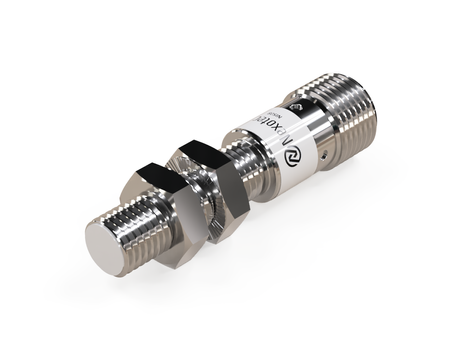

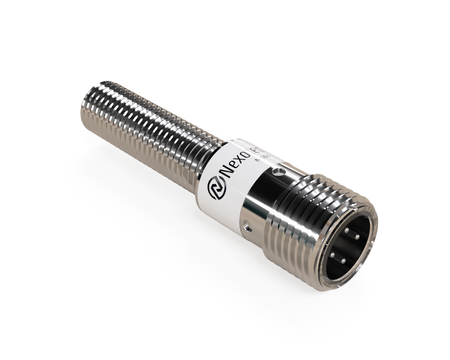

An industrial inductive sensor NIS08662 with a PBT sensing face combines a compact design with high durability.

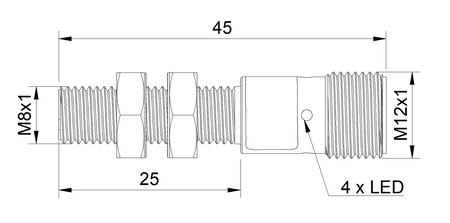

The M8 design allows use in small and medium-sized automation installations. Ø8 x 45 mm sensors offer small dimensions allowing installation in limited space.
Technical specification:
- Diameter: M8, stable construction for continuous operation
- Length: 45 mm, easy integration with mounting systems
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, resistant to aggressive industrial environments
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NC, opens upon object detection
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Detection of elements in automated vehicle production systems.
- Application in material feeding and unloading systems.
- Control of production line synchronization.
- Support for synchronization of robots and machines.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Resistance to vibrations and intensive operation
- Resistance to coolants, oils and industrial contaminants
- Precise synchronization of production processes
- Reliable synchronization of machines and robots
- Long service life in continuous operation
When to choose this model
- Universal solution for most standard industrial applications.
- Used in standard production processes.
- Ensures repeatable detection over long periods.
- Good for applications requiring reliability.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
