Symbol: NIS08202-K3

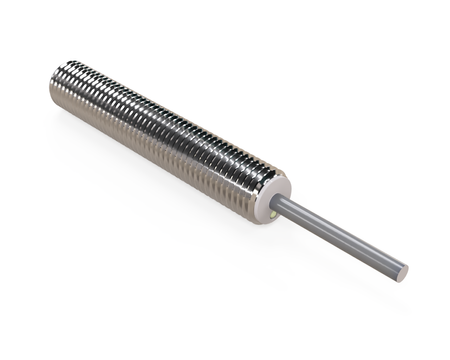

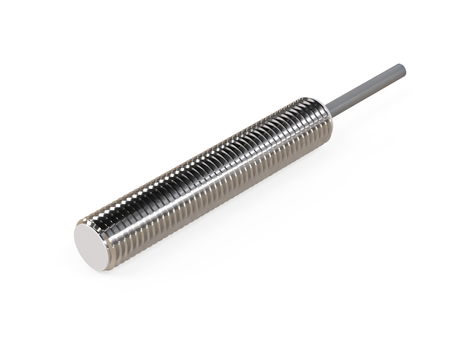

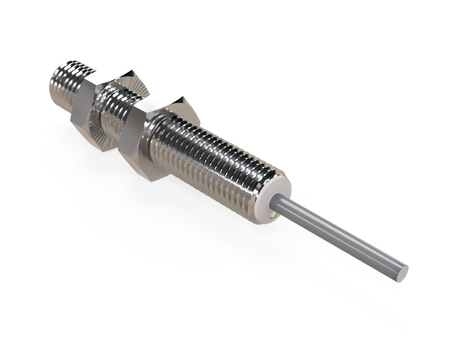

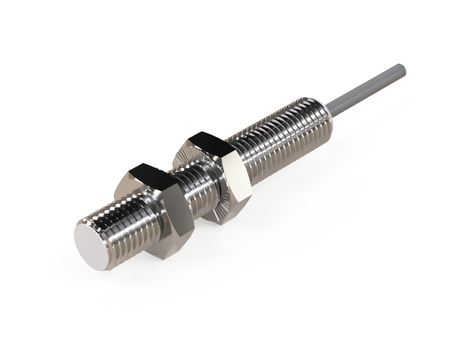

Inductive sensor M8 45 mm cable 3m NPN NC Sn = 1 mm

+ Add to compareAdd to shopping list
  • ● M8 enables efficient layout planning
  • ● Housing for small panels and machines
  • ● Sensor for minimal distance detection
  • ● With cable – convenient maintenance and service
18,04 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Custom product
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Custom product
Shipment
Free and fast delivery from 22,90 €
30 days for free returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.
Files to download

A modern inductive sensor NIS08202-K3 with a PBT sensing face provides a long service life in demanding industrial environments.

The M8 model provides convenient installation in areas with limited space availability. Ø8 x 45 mm sensors can be installed in narrow construction spaces.

Technical specification:

  • Diameter: M8, wide compatibility with mounting brackets
  • Length: 45 mm, stable mechanical construction
  • Sensing range: 1 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, resistant to aggressive industrial environments
  • Sensing face material: PBT, sensing face material – PBT
  • Mounting: flush mounting
  • Switching function: NC, continuous signal monitoring in circuit
  • Cable length: 3 m
  • Supply voltage: DC 10-30V, protection against typical voltage fluctuations

Applications

  • Detection of elements in automated vehicle production systems.
  • Detection of workpieces before machining operations.
  • Detection of metal elements and components in packaging systems.
  • Application in robotic systems for detecting element positions.
  • Use in mass and custom production systems.

Features and Benefits

  • Stable operation in high-dynamic cycle environments
  • Compatibility with standard industrial control systems
  • Precise synchronization of production processes
  • Reliable synchronization of machines and robots
  • Stable operation in high-duty cycle machines

When to choose this model

  • Used in typical production lines and automation systems.
  • Suitable for multi-industry applications.
  • Often chosen as a standard industrial sensor.
  • Used in systems of medium complexity.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08202-K3
Producer code
5907367807639
Series
NIS08
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M8
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

1 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NC
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

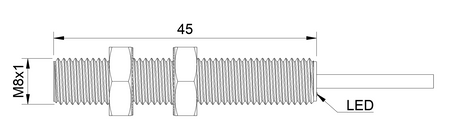

Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 3 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS08202-K3
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
47 g
Weight in kg
0,052
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
