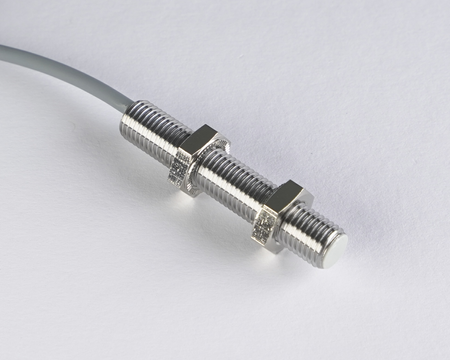

Inductive sensor M8 45 mm cable 2m PNP NO & NC Sn = 3 mm
Inductive sensor M8 45 mm cable 2m PNP NO & NC Sn = 3 mm
- NIS08246-K2
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
Address:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08246-K2
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M8
Switching distance
3 mm
Mounting
Semi-Flush mounting
Output function
PNP
Switching function
NO & NC
Response time
0,2ms
Switching frequency
1kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
TAK
Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
2 m
Short-circuit protection
TAK
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
