Inductive sensor M8 45 mm cable 2m NPN NC Sn = 1 mm
- ● Compact M8 diameter simplifies integration
- ● Compact housing for tight mounting spaces
- ● Sn distance for close system integration
- ● With cable – ideal for universal installations
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08202-K2 with a PBT sensing face is a robust component for modern automation systems.

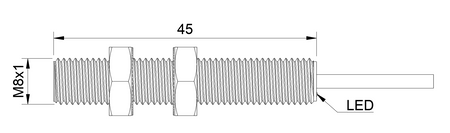

Thanks to its compact dimensions, M8 sensors are ideal for applications with limited mounting space. The Ø8 x 45 mm size enables installation in areas with limited depth.
Technical specification:
- Diameter: M8, good compromise between size and detection range
- Length: 45 mm, good balance between size and durability
- Sensing range: 1 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: 2 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Detection of elements in automated vehicle production systems.
- Support for automatic clamping systems.
- Application in forming and sealing machines.
- Application in robotic systems for detecting element positions.
- Control of processes in complex mechanical systems.
Features and Benefits
- High reliability in automated automotive production lines
- Precise synchronization of production processes
- Reliable synchronization of machines and robots
When to choose this model
- Used in standard OEM machines.
- Ensures stable operation under typical industrial conditions.
- Ensures repeatable detection over long periods.
- Suitable for applications with stable operating conditions.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
