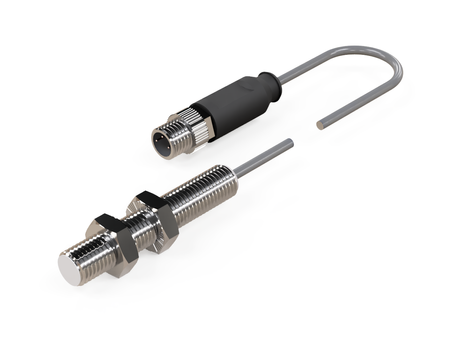

NIS08282 - 1 - Inductive sensor M8 45 mm cable 0,3 m connector M8 NPN NC Sn = 1 mm

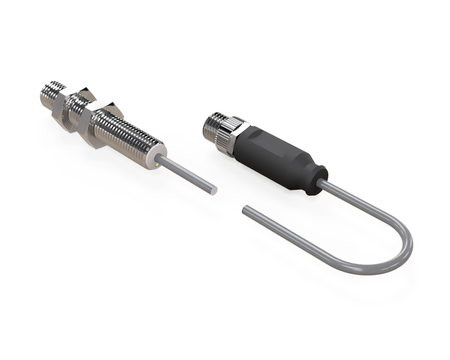

NIS08282 - 2 - Inductive sensor M8 45 mm cable 0,3 m connector M8 NPN NC Sn = 1 mm

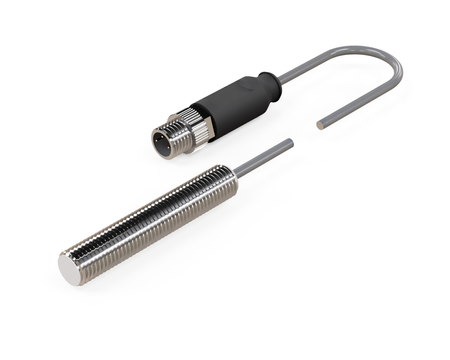

NIS08282 - 3 - Inductive sensor M8 45 mm cable 0,3 m connector M8 NPN NC Sn = 1 mm

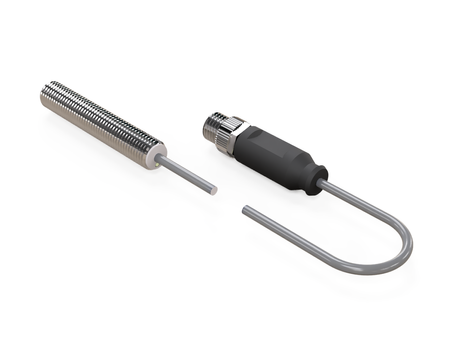

NIS08282 - 4 - Inductive sensor M8 45 mm cable 0,3 m connector M8 NPN NC Sn = 1 mm

Symbol: NIS08282

Inductive sensor M8 45 mm cable 0,3 m connector M8 NPN NC Sn = 1 mm

● M8 allows convenient system layout planning
● Compact housing for tight mounting spaces
● Sensor for detection at short distances
● With cable, simple installation in machinery

Files to download

An industrial inductive sensor NIS08282 with a PBT sensing face is ideal for applications requiring durability and precise performance.

The small-size M8 design facilitates installation in industrial automation systems. Ø8 x 45 mm sensors offer small dimensions allowing installation in limited space.

Technical specification:

Diameter: M8, stable construction for continuous operation
Length: 45 mm, easy integration with mounting systems
Sensing range: 1 mm
Housing: Threaded housing sensor
Housing material: Stainless steel, suitable for operation in humidity and contamination
Sensing face material: PBT, stable dielectric properties for inductive field
Mounting: flush mounting
Switching function: NC, continuous signal monitoring in circuit
Cable length: 0,3 m
Supply voltage: DC 10-30V, compatible with PLC systems

Applications

Detection of elements in automated vehicle production systems.
Support for automatic clamping systems.
Detection of metal elements and components in packaging systems.
Use in automation of pick & place processes.
Control of processes in complex mechanical systems.

Features and Benefits

High reliability in automated automotive production lines
Compatibility with standard industrial control systems
Easy integration with dosing and labeling machines
Fast detection in pick & place processes
Versatile use in different OEM machine types

When to choose this model

Used in standard OEM machines.
Ensures good mounting compatibility.
Often chosen as a standard industrial sensor.
Used in systems of medium complexity.

Connection

The sensor has an NPN output, so connect it with an M8 3-pin connection cable without LEDs. Cables with LEDs (NXOC08261…, NXOC08121…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.

Other information

Brand

Nexotec

Entity responsible for this product in the EU

Nexotec spółka z ograniczoną odpowiedzialnościąMore

ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl

Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl

Symbol

NIS08282

Producer code

5907367809282

Series

NIS08

Warranty

24-month warranty

General information

DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

1 mm

Mounting

Mounting Flush

Output function

NPN

Switching function

Electrical data

Operating voltage

10–30 V DC

No load current

<10 mA

Max load current

200mA

Leakage current

<0.01 mA

Repeat accuracy

<1.0%sr

Short-circuit protection

YES

Reverse polarity protection

YES

Overload trip point

220 mA

Voltage drop

<1.5 V

Ripple

<10%

Response time

0.1 ms

Switching frequency

2 kHz

Temperature drift

<10%sr

Switching hysteresis

<15%sr

Mechanical data

Housing shape

Threaded

Housing material

Stainless steel

Material active face

PBT

LED display

YES

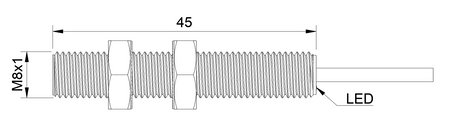

Dimensions

Ø8 x 45 mm

Sensor length

45 mm

Electrical connection

Connection type

Connector

Connector size

Number of pins

Cable length

0,3 m

Cable diameter

⌀ 3 mm

Cable

3 x 0,15 mm²

Cable material

PVC

Operating conditions

Protection category

IP67

Operating temperature min

-25°C

Operating temperature max

+70°C

Other

Manufacturer code

NIS08282

Condition

New

Packaging condition

Original

Type

Inductive

Net weight

21 g

Weight in kg

0,026

Reduction factor

Fe37 steel

Aluminium

0,35 - 0,6

Brass

0,4 - 0,7

Copper

0,25 – 0,5

Stainless steel

0,8 - 1

Cast iron

0,95 - 1

Nickel

0,6 - 0,75
