Symbol: NIS08333

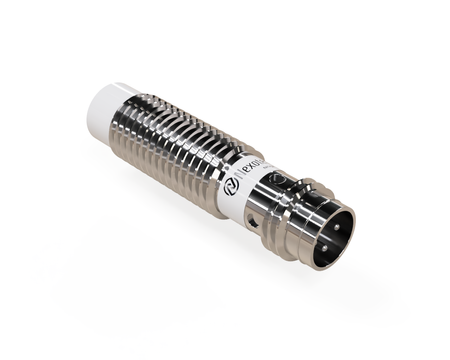

Inductive sensor M8 32 mm connector M8 PNP NO Sn = 4 mm

- Remove from comparison Add to shopping list
  • ● M8 allows easy installation
  • ● Short housing for small installations
  • ● Sensor for long-range detection
  • ● Plug-in – quick installation and connection
24,17 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Product available in very large quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very large quantities
Shipment
Free and fast delivery from 22,83 €
30 days for free returns
Find out in which store you can check the product and buy it right away
Inductive sensor M8 32 mm connector M8 PNP NO Sn = 4 mm
Inductive sensor M8 32 mm connector M8 PNP NO Sn = 4 mm
one size
Safe shopping
After purchase you will receive pts.
Files to download

An inductive sensor NIS08333 with a PBT sensing face is a modern industrial automation component that ensures stable operation and high wear resistance.

The small M8 housing allows installation in tight spaces of automation systems. Ø8 x 32 mm sensors, thanks to their diameter, fit standard small mounting holes.

Technical specification:

  • Diameter: M8, good compromise between size and detection range
  • Length: 32 mm, good balance between size and durability
  • Sensing range: 4 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, increased mechanical strength
  • Sensing face material: PBT,
  • Mounting: non-flush mounting
  • Switching function: NO, normally open state at rest
  • Cable length: n/d
  • Supply voltage: DC 10-30V, compatible with PLC systems

Applications

  • Support for automation of welding processes and steel structure assembly.
  • Application in material feeding and unloading systems.
  • Operation in high-speed packaging production cycles.
  • Detection of elements in robotic work zones.
  • Application in machine safety and interlock systems.

Features and Benefits

  • High reliability in automated automotive production lines
  • High detection precision in machining environments
  • Precise synchronization of production processes
  • Versatile use in different OEM machine types

When to choose this model

  • Ensures good mounting compatibility.
  • Chosen for modernization of industrial machines.
  • Suitable for a wide range of OEM applications.
  • Used in quality control systems.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08333
Producer code
5907367809633
Series
NIS08
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M8
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

4 mm
Mounting
Non-flush mounting
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.2 ms
Switching frequency
1 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES
Dimensions
Ø8 x 32 mm
Sensor length
32 mm
Electrical connection
Connection type
Connector
Connector size
M8
Number of pins
3
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS08333
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
9 g
Weight in kg
0,014
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
