Symbol: NIS08323

Inductive sensor M8 32 mm connector M8 PNP NO Sn = 2 mm

- Remove from comparison Add to shopping list
  • ● M8 suitable for standard systems
  • ● Compact housing for small systems
  • ● Comfortable detection range for common processes
  • ● Plug-in – convenient installation and operation
23,97 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Product available in very large quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very large quantities
Shipment
Free and fast delivery from 22,83 €
30 days for free returns
Find out in which store you can check the product and buy it right away
Inductive sensor M8 32 mm connector M8 PNP NO Sn = 2 mm
Inductive sensor M8 32 mm connector M8 PNP NO Sn = 2 mm
one size
Safe shopping
After purchase you will receive pts.
Files to download

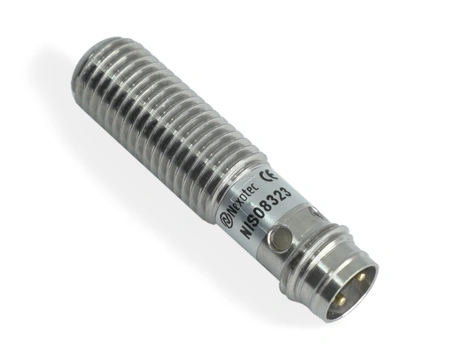

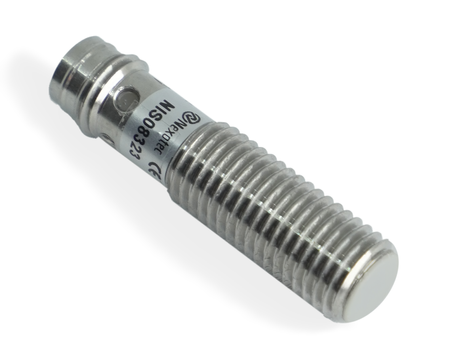

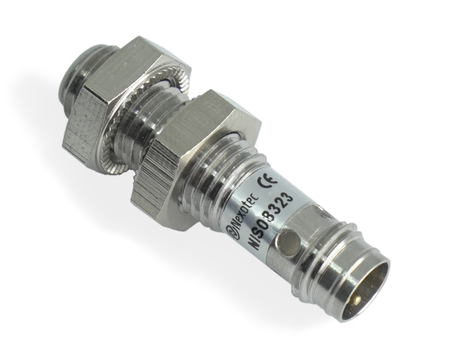

An industrial inductive sensor NIS08323 with a PBT sensing face combines a compact design with high durability.

Thanks to their optimal size, M8 sensors can be integrated into many automation systems. Ø8 x 32 mm sensors can be installed in narrow construction spaces.

Technical specification:

  • Diameter: M8, commonly used in industrial automation
  • Length: 32 mm, good balance between size and durability
  • Sensing range: 2 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, long sensor lifetime
  • Sensing face material: PBT, sensing face material – PBT
  • Mounting: flush mounting
  • Switching function: NO, signal generated upon metal detection
  • Cable length: n/d
  • Supply voltage: DC 10-30V, compatible with PLC systems

Applications

  • Monitoring of component presence in production transport systems.
  • Operation in high-dynamics industrial environments.
  • Use in automation of packaging and sorting processes.
  • Use in automatic assembly systems.
  • Operation in demanding industrial high-reliability environments.

Features and Benefits

  • Easy integration with robotic and PLC systems
  • Stable operation in CNC machines and automation systems
  • Stable operation in dynamic automation systems

When to choose this model

  • Suitable for stable detection of metal parts.
  • Good for medium and light loads.
  • Used in systems with moderate operating dynamics.
  • Used in quality control systems.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08323
Producer code
5907367809572
Series
NIS08
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M8
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

2 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES
Dimensions
Ø8 x 32 mm
Sensor length
32 mm
Electrical connection
Connection type
Connector
Connector size
M8
Number of pins
3
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS08323
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
9 g
Weight in kg
0,014
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
24-month warranty

This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
