Symbol: NIS08304

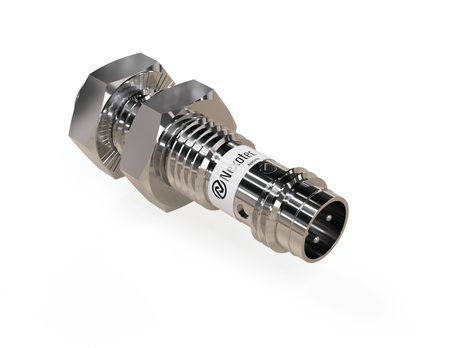

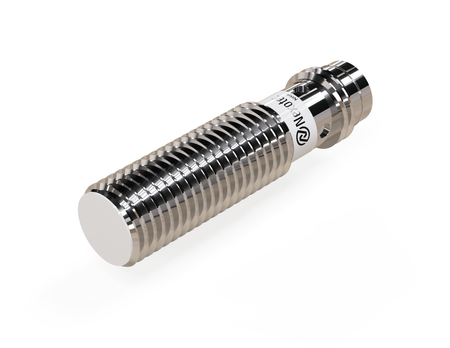

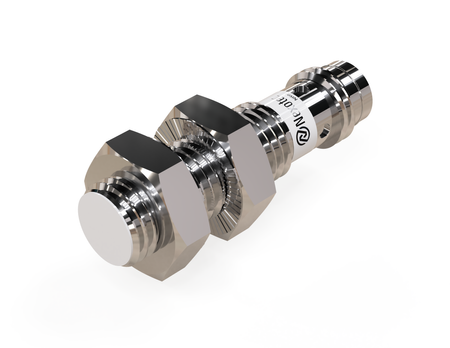

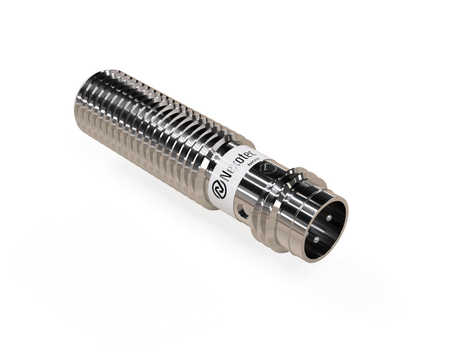

Inductive sensor M8 32 mm connector M8 PNP NC Sn = 1 mm

+ Add to compareAdd to shopping list
  • ● M8 enables efficient layout planning
  • ● Compact housing for small systems
  • ● Sensor with limited detection range
  • ● Plug-in – convenient installation and operation
22,70 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Custom product
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Custom product
Shipment
Free and fast delivery from 22,83 €
30 days for free returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.
Files to download

An inductive sensor NIS08304 for industrial automation with a PBT sensing face provides stable and long-lasting performance.

Thanks to its compact dimensions, M8 sensors are ideal for applications with limited mounting space. The Ø8 x 32 mm size enables installation in areas with limited depth.

Technical specification:

  • Diameter: M8, wide compatibility with mounting brackets
  • Length: 32 mm, universal dimensions for most applications
  • Sensing range: 1 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, long sensor lifetime
  • Sensing face material: PBT,
  • Mounting: flush mounting
  • Switching function: NC, opens upon object detection
  • Cable length: n/d
  • Supply voltage: DC 10-30V, protection against typical voltage fluctuations

Applications

  • Application in robotized assembly stations.
  • Application in material feeding and unloading systems.
  • Control of production line synchronization.
  • Detection of elements in robotic work zones.
  • Application in industrial machines for controlling position of moving parts.

Features and Benefits

  • High reliability in automated automotive production lines
  • Reliable detection of workpiece and tool positions
  • Precise synchronization of production processes
  • Fast detection in pick & place processes
  • High resistance to harsh industrial conditions

When to choose this model

  • Universal solution for most standard industrial applications.
  • Ensures good mounting compatibility.
  • Used in assembly lines across many industries.
  • Suitable for multi-shift operation.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS08304
Producer code
5907367809466
Series
NIS08
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M8
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

1 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NC
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

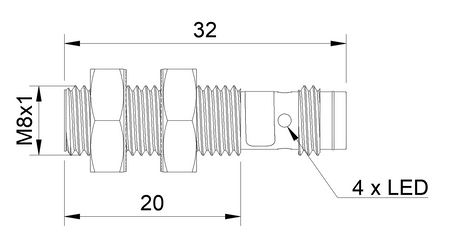

Dimensions
Ø8 x 32 mm
Sensor length
32 mm
Electrical connection
Connection type
Connector
Connector size
M8
Number of pins
3
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS08304
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
9 g
Weight in kg
0,014
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
