Symbol: NIS08331

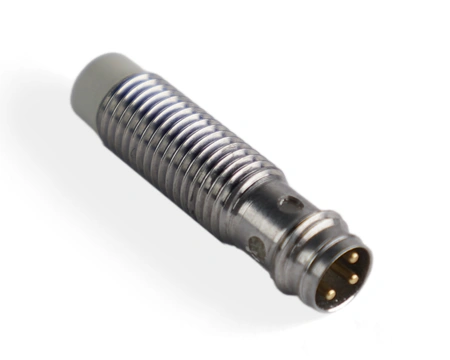

Inductive sensor M8 32 mm connector M8 NPN NO Sn = 4 mm

● M8 enables efficient system design
● Short housing for limited spaces
● Sensor with extended range for long-distance detection
● Plug-in – stainless steel housing

Files to download

An inductive sensor NIS08331 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.

Thanks to their optimal size, M8 sensors can be integrated into many automation systems. The optimized Ø8 x 32 mm size combines compactness with ease of installation.

Technical specification:

Diameter: M8, wide compatibility with mounting brackets
Length: 32 mm, stable mechanical construction
Sensing range: 4 mm
Housing: Threaded housing sensor
Housing material: Stainless steel, long sensor lifetime
Sensing face material: PBT, sensing face material – PBT
Mounting: non-flush mounting
Switching function: NO, used in typical control applications
Cable length: n/d
Supply voltage: DC 10-30V, protection against typical voltage fluctuations

Applications

Application in robotized assembly stations.
Detection of workpieces in machining fixtures.
Use in automation of packaging and sorting processes.
Detection of elements in robotic work zones.
Use in actuator and mechanism control systems.

Features and Benefits

High reliability in automated automotive production lines
Stable operation in CNC machines and automation systems
Reliable operation in automated packaging systems
High resistance to harsh industrial conditions

When to choose this model

Often used in PLC systems and control automation.
Suitable for multi-industry applications.
Suitable for a wide range of OEM applications.
Performs well in standard installations.

Connection

The sensor has an NPN output, so connect it with an M8 3-pin connection cable without LEDs. Cables with LEDs (NXOC08261…, NXOC08121…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.

Other information

Brand

Nexotec

Entity responsible for this product in the EU

Nexotec spółka z ograniczoną odpowiedzialnościąMore

ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl

Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl

Symbol

NIS08331

Producer code

5907367809619

Series

NIS08

Warranty

24-month warranty

General information

DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

4 mm

Mounting

Non-flush mounting

Output function

NPN

Switching function

Electrical data

Operating voltage

10–30 V DC

No load current

<10 mA

Max load current

200mA

Leakage current

<0.01 mA

Repeat accuracy

<1.0%sr

Short-circuit protection

YES

Reverse polarity protection

YES

Overload trip point

220 mA

Voltage drop

<1.5 V

Ripple

<10%

Response time

0.2 ms

Switching frequency

1 kHz

Temperature drift

<10%sr

Switching hysteresis

<15%sr

Mechanical data

Housing shape

Threaded

Housing material

Stainless steel

Material active face

PBT

LED display

YES

Dimensions

Ø8 x 32 mm

Sensor length

32 mm

Electrical connection

Connection type

Connector

Connector size

Number of pins

Number of wires

Cable length

n/d

Operating conditions

Protection category

IP67

Operating temperature min

-25°C

Operating temperature max

+70°C

Other

Manufacturer code

NIS08331

Condition

New

Packaging condition

Original

Type

Inductive

Net weight

9 g

Weight in kg

0,014

Reduction factor

Fe37 steel

Aluminium

0,35 - 0,6

Brass

0,4 - 0,7

Copper

0,25 – 0,5

Stainless steel

0,8 - 1

Cast iron

0,95 - 1

Nickel

0,6 - 0,75

24-month warranty

This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
