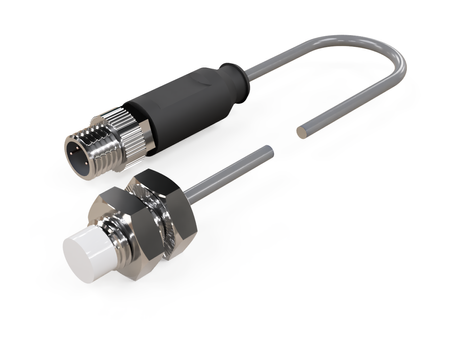

NIS08094 - 1 - Inductive sensor M8 18 mm cable 0,3 m connector M8 PNP NC Sn = 2 mm

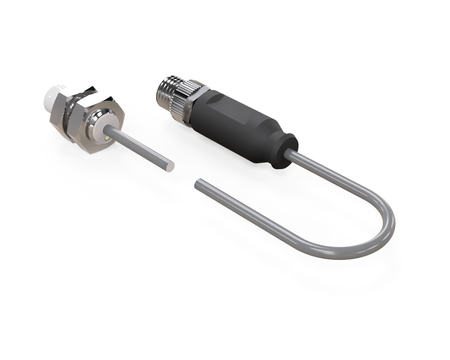

NIS08094 - 2 - Inductive sensor M8 18 mm cable 0,3 m connector M8 PNP NC Sn = 2 mm

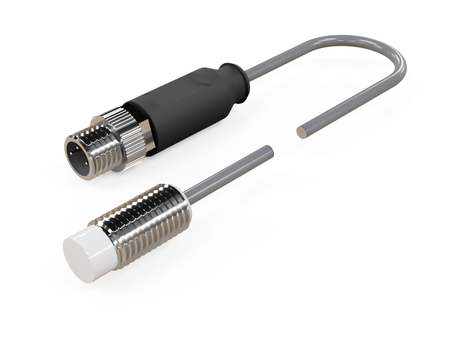

NIS08094 - 3 - Inductive sensor M8 18 mm cable 0,3 m connector M8 PNP NC Sn = 2 mm

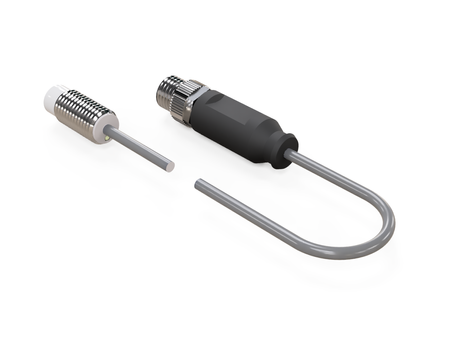

NIS08094 - 4 - Inductive sensor M8 18 mm cable 0,3 m connector M8 PNP NC Sn = 2 mm

Symbol: NIS08094

Inductive sensor M8 18 mm cable 0,3 m connector M8 PNP NC Sn = 2 mm

● M8 housing simplifies component arrangement
● Short housing for densely packed assemblies
● Dependable range for common automation processes
● With cable, performs well in demanding conditions

Files to download

An inductive sensor NIS08094 for industrial automation with a PBT sensing face provides stable and long-lasting performance.

Thanks to their optimal size, M8 sensors can be integrated into many automation systems. Ø8 x 18 mm dimensions allow easy adaptation to compact installations.

Technical specification:

Diameter: M8, commonly used in industrial automation
Length: 18 mm, design intended for tight installation spaces
Sensing range: 2 mm
Housing: Threaded housing sensor
Housing material: Stainless steel, suitable for operation in humidity and contamination
Sensing face material: PBT, sensing face material – PBT
Mounting: non-flush mounting
Switching function: NC, continuous signal monitoring in circuit
Cable length: 0,3 m
Supply voltage: DC 10-30V, stable operation in DC automation

Applications

Support for automation of welding processes and steel structure assembly.
Position control of machine axes and working components.
Control of production line synchronization.
Detection of elements in robotic work zones.
Detection of position in internal transport systems.

Features and Benefits

Stable operation in high-dynamic cycle environments
Compatibility with standard industrial control systems
High precision positioning of elements in robotic systems
Reliable operation in safety and control systems

When to choose this model

Used in standard OEM machines.
Ensures good mounting compatibility.
Performs well in general-purpose automation.
Ensures good availability and easy replacement.

Other information

Brand

Nexotec

Entity responsible for this product in the EU

Nexotec spółka z ograniczoną odpowiedzialnościąMore

ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl

Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl

Symbol

NIS08094

Producer code

5907367805758

Series

NIS08

Warranty

24-month warranty

General information

DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

2 mm

Mounting

Non-flush mounting

Output function

PNP

Switching function

Electrical data

Operating voltage

10–30 V DC

No load current

<10 mA

Max load current

200mA

Leakage current

<0.01 mA

Repeat accuracy

<1.0%sr

Short-circuit protection

YES

Reverse polarity protection

YES

Overload trip point

220 mA

Voltage drop

<1.5 V

Ripple

<10%

Response time

0.1 ms

Switching frequency

2 kHz

Temperature drift

<10%sr

Switching hysteresis

<15%sr

Mechanical data

Housing shape

Threaded

Housing material

Stainless steel

Material active face

PBT

LED display

YES

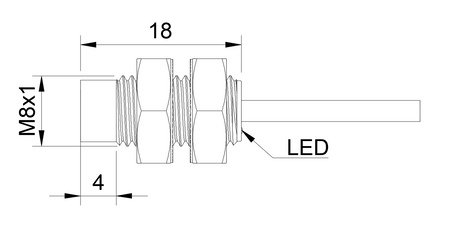

Dimensions

Ø8 x 18 mm

Sensor length

18 mm

Electrical connection

Connection type

Connector

Connector size

Number of pins

Cable length

0,3 m

Cable diameter

⌀ 3 mm

Cable

3 x 0,15 mm²

Cable material

PVC

Operating conditions

Protection category

IP67

Operating temperature min

-25°C

Operating temperature max

+70°C

Other

Manufacturer code

NIS08094

Condition

New

Packaging condition

Original

Type

Inductive

Net weight

15 g

Weight in kg

0,02

Reduction factor

Fe37 steel

Aluminium

0,35 - 0,6

Brass

0,4 - 0,7

Copper

0,25 – 0,5

Stainless steel

0,8 - 1

Cast iron

0,95 - 1

Nickel

0,6 - 0,75
