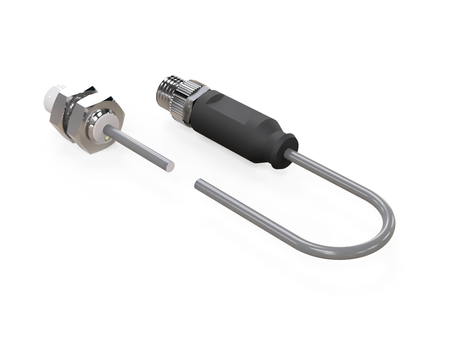

Inductive sensor M8 18 mm cable 0,3 m connector M8 NPN NO Sn = 2 mm
- ● M8 enables efficient system design
- ● Compact housing for tight mounting spaces
- ● Classic detection range in industrial practice
- ● With cable, quick installation and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08091 with a PBT sensing face is a modern industrial automation component that ensures stable operation and high wear resistance.
The M8 housing was optimized for operation in limited space. The compact Ø8 x 18 mm housing facilitates placing multiple sensors next to each other.
Technical specification:
- Diameter: M8, commonly used in industrial automation
- Length: 18 mm, limited axial housing length
- Sensing range: 2 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: 0,3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Application in robotized assembly stations.
- Detection of workpieces in machining fixtures.
- Application in forming and sealing machines.
- Detection of elements in robotic work zones.
- Detection of position in internal transport systems.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Fast response in dynamic machining processes
- Reliable operation in automated packaging systems
- Compatibility with industrial robots and EOAT systems
- High resistance to harsh industrial conditions
When to choose this model
- Often used in PLC systems and control automation.
- Used in transport and assembly systems.
- Ensures repeatable detection over long periods.
- Often used in production automation.
Connection
The sensor has an NPN output, so connect it with an M8 3-pin connection cable without LEDs. Cables with LEDs (NXOC08261…, NXOC08121…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
