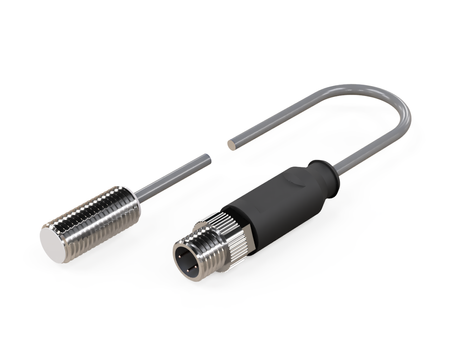

Inductive sensor M8 18 mm cable 0,3 m connector M8 NPN NC Sn = 1 mm
- ● M8 suitable for production lines
- ● Compact module for densely packed systems
- ● Sensor for restricted sensing zone
- ● With cable, durable for everyday use
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08082 with a PBT sensing face guarantees stable operation even under intensive use.
The compact M8 design enables efficient operation in limited mounting space. The Ø8 x 18 mm size enables installation in areas with limited depth.
Technical specification:
- Diameter: M8, good compromise between size and detection range
- Length: 18 mm, low weight and compact sensor format
- Sensing range: 1 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: 0,3 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in robotized assembly stations.
- Position control of machine axes and working components.
- Use in automation of packaging and sorting processes.
- Application in robotic systems for detecting element positions.
- Use in mass and custom production systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Reliable operation in automated packaging systems
- Reliable synchronization of machines and robots
When to choose this model
- Suitable for stable detection of metal parts.
- Chosen for modernization of industrial machines.
- Ensures repeatable detection over long periods.
- Suitable for multi-shift operation.
Connection
The sensor has an NPN output, so connect it with an M8 3-pin connection cable without LEDs. Cables with LEDs (NXOC08261…, NXOC08121…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
