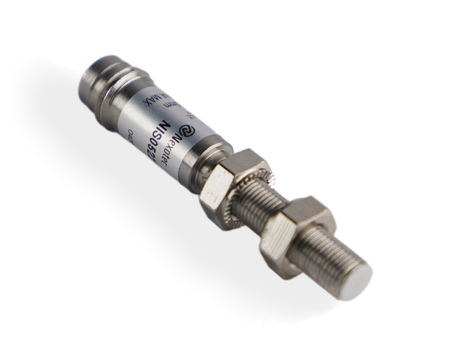

NIS05223 - 4 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 5 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 6 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 7 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 8 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 9 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 1 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 2 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 3 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 4 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 5 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 6 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 7 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 8 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
NIS05223 - 9 - Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
Symbol: NIS05223

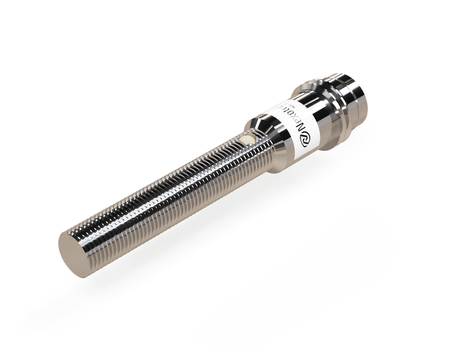

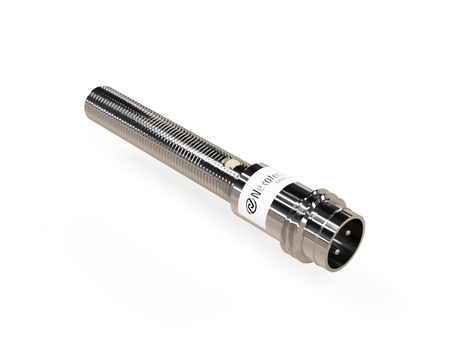

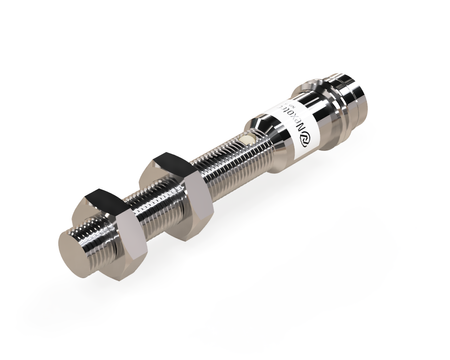

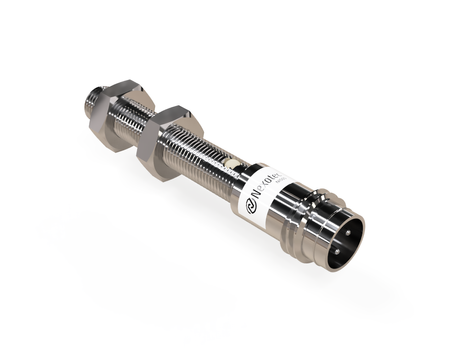

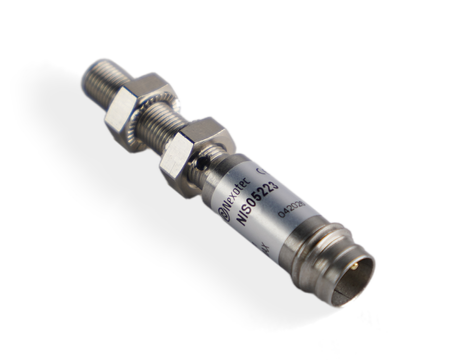

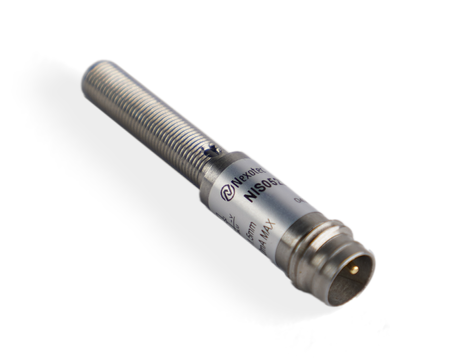

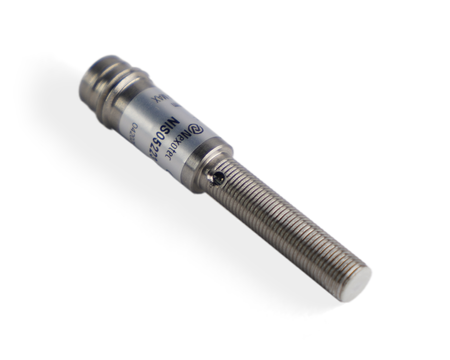

Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm

+ Add to compareAdd to shopping list
  • ● Compact M5 for standard assemblies
  • ● Ideal for confined mounting areas
  • ● Reliable detection range for everyday applications
  • ● Plug-in – convenient installation and operation
Switching distance
Output function
Switching function
Sensor length
Connection type
Connector size
37,94 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Product available in very large quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very large quantities
Shipment
Free and fast delivery from 9,24 €
30 days for free returns
Find out in which store you can check the product and buy it right away
Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
Inductive sensor M5 40 mm connector M8 PNP NO Sn = 1,5 mm
Switching distance:1.5 mm
Output function:PNP
Switching function:NO
Sensor length:40 mm
Connection type:Connector
Connector size:M8
one size
Safe shopping
After purchase you will receive pts.
Files to download

A compact inductive sensor NIS05223 with a PBT sensing face is a reliable solution for control systems and production lines.

The sensor belongs to the Nexotec series, which combines compact dimensions with high functionality in industrial automation systems. Thanks to the ultra-small Ø5 x 40 mm diameter, the sensors can be installed in extremely tight spaces.

Technical specification:

  • Diameter: M5,
  • Length: 40 mm, good balance between size and durability
  • Sensing range: 1,5 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, suitable for operation in humidity and contamination
  • Sensing face material: PBT, sensing face material – PBT
  • Mounting: Flush mounting
  • Switching function: NO, signal generated upon metal detection
  • Cable length: n/d
  • Supply voltage: DC 10-30V, stable operation in DC automation

Applications

  • Application in production lines of automotive components for detecting the presence of metal elements.
  • Use in automation of cutting and milling processes.
  • Control of labeling and dosing machines.
  • Application in robotic axis positioning systems.
  • Application in industrial machines for controlling position of moving parts.

Features and Benefits

  • Easy integration with robotic and PLC systems
  • Resistance to intensive cyclic operation
  • Fast detection in pick & place processes
  • High resistance to harsh industrial conditions

When to choose this model

  • Suitable for applications with limited mounting space where a compact design is important.
  • Used where mounting space is a key limitation.
  • Used in systems requiring flexible mounting.
  • Used in automation with limited installation space.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05223
Producer code
5907367803662
Series
NIS05
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M5
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

1.5 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

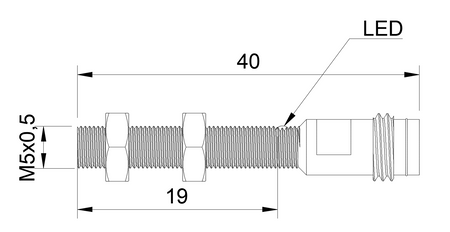

Dimensions
Ø5 x 40 mm
Sensor length
40 mm
Electrical connection
Connection type
Connector
Connector size
M8
Number of pins
3
Number of wires
3
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS05223
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
5 g
Weight in kg
0,01
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
