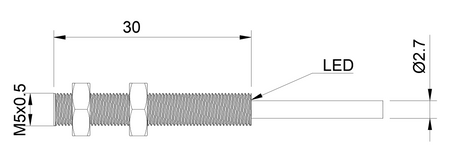

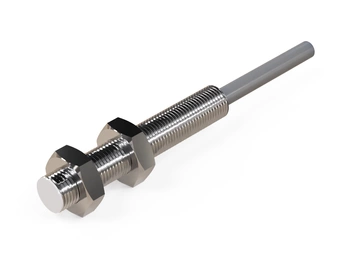

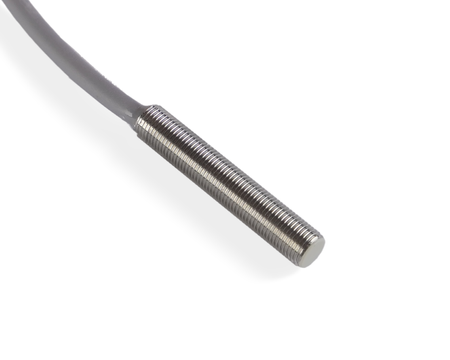

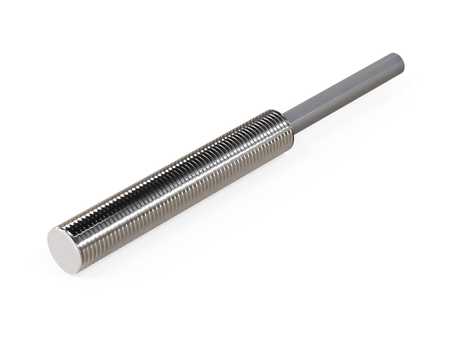

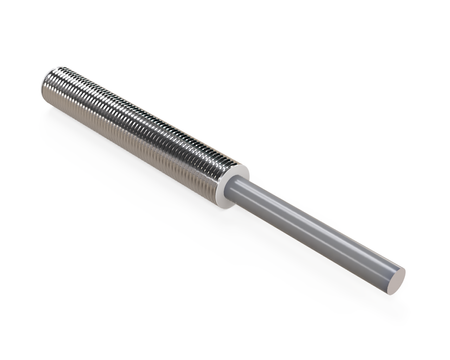

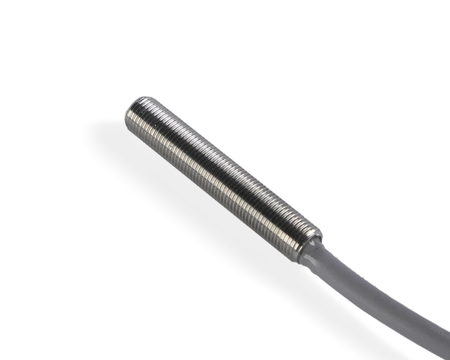

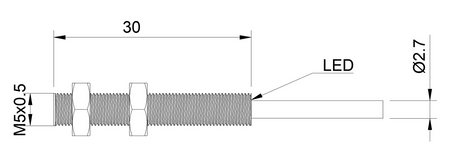

Inductive sensor M5 30 mm cable 5m NPN NC Sn = 0,8 mm
- ● M5 enables precise positioning
- ● Mini enclosure saves space
- ● Verified Sn distance for typical applications
- ● With cable – resistant to dirt and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS05562 with a PBT sensing face combines a compact design with high durability.
The product is part of the Nexotec miniature series designed for installations with limited mounting space. Ø5 x 30 mm sensors occupy minimal space while maintaining full functionality.
Technical specification:
- Diameter: M5,
- Length: 30 mm, stable mechanical construction
- Sensing range: 0,8 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT,
- Mounting: flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: 5 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Operation in demanding industrial automotive environments.
- Position control of machine axes and working components.
- Support for automatic packaging systems.
- Detection of elements in robotic work zones.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Resistance to vibrations and intensive operation
- Resistance to coolants, oils and industrial contaminants
- Resistance to frequent cycles and micro-vibrations
- High resistance to harsh industrial conditions
When to choose this model
- Used where small dimensions and stable operation are required.
- Designed for applications with moderate operating dynamics.
- Good for systems with high component density.
- Chosen for precise small mechanisms.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
