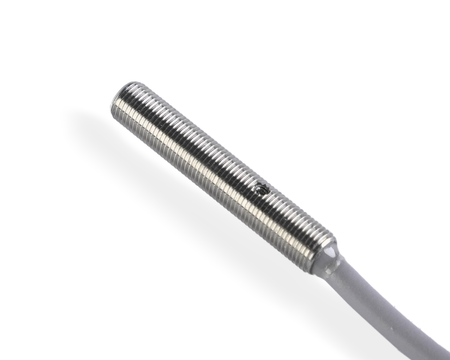

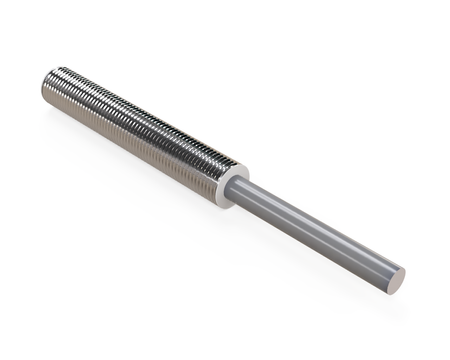

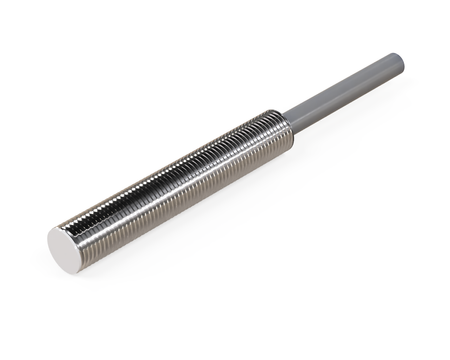

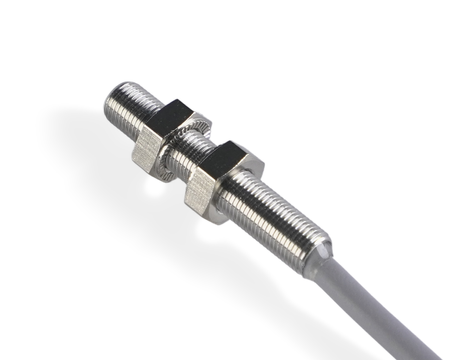

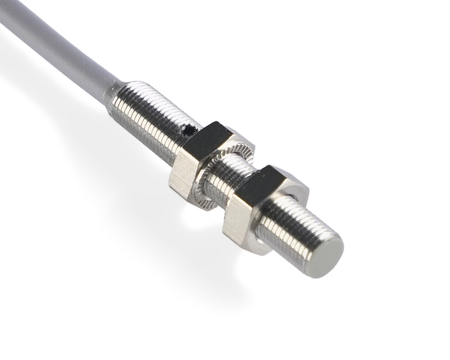

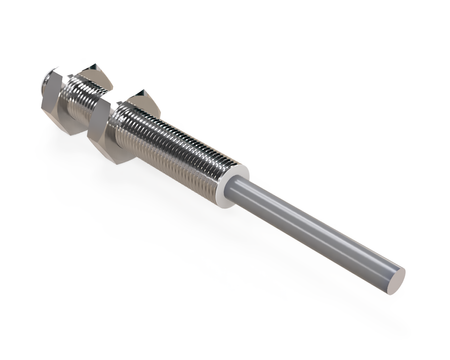

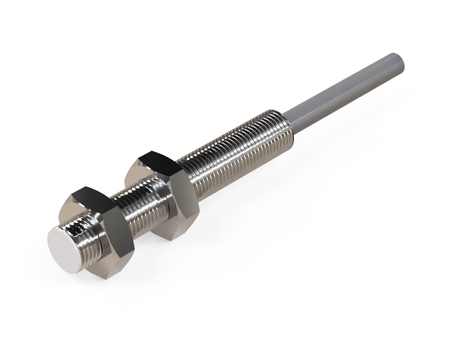

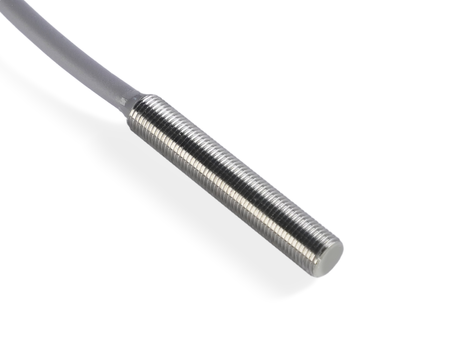

Inductive sensor M5 30 mm cable 3m NPN NC Sn = 0,8 mm
Symbol:
NIS05362
Inductive sensor M5 30 mm cable 3m NPN NC Sn = 0,8 mm
- ● Minimal M5 simplifies system planning
- ● Housing for small panels and machines
- ● Nominal distance ensuring stability
- ● With cable – stable under vibrations and shocks
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05362
A professional inductive sensor NIS05362 with a Teflon sensing face performs exceptionally well in applications requiring high reliability.
The inductive sensor from this Nexotec series was created for systems requiring small and efficient solutions., The miniature Ø5 x 30 mm housing enables installation where standard sizes are not applicable.
Technical specification:
- Diameter: M5,
- Length: 30 mm, stable mechanical construction
- Sensing range: 0,8 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, increased mechanical strength
- Sensing face material: PBT, sensing face material – PBT
- Mounting: flush mounting
- Switching function: NC, opens upon object detection
- Cable length: 3 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Detection of elements in automated vehicle production systems.
- Application in material feeding and unloading systems.
- Control of production line synchronization.
- Application in robotic axis positioning systems.
- Support for high-duty cycle equipment operation.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- High detection precision in machining environments
- Easy integration with dosing and labeling machines
- Resistance to frequent cycles and micro-vibrations
- Long service life in continuous operation
When to choose this model
- A solution for applications requiring a high number of detection points in a small area.
- Well suited for projects requiring miniaturization.
- Well suited for multi-point applications.
- Used in systems with limited service access.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05362
Producer code
5907367803938
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
0,8 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

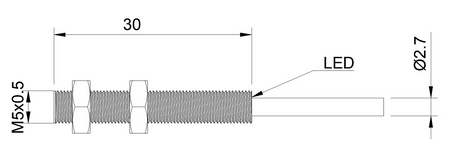

Dimensions
Ø5 x 30 mm
Sensor length
30 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05362
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
