Symbol: NIS05082

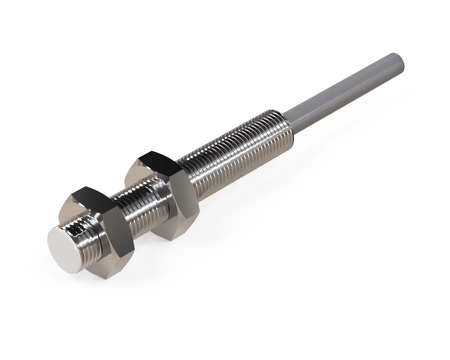

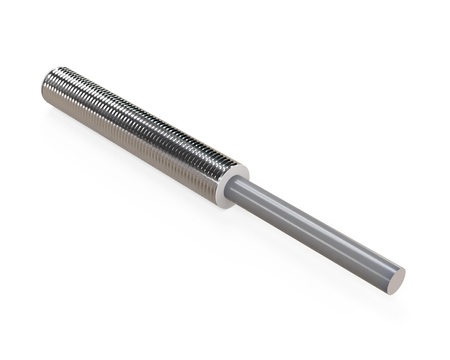

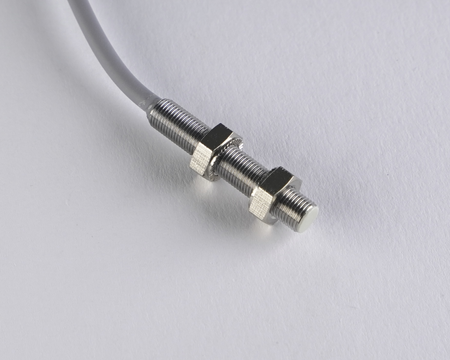

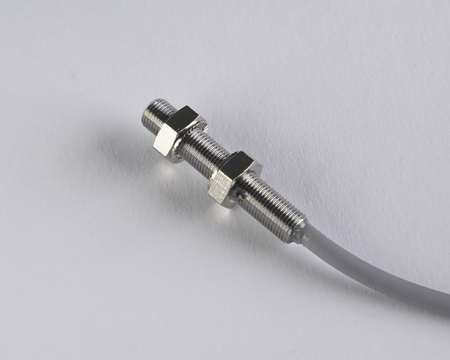

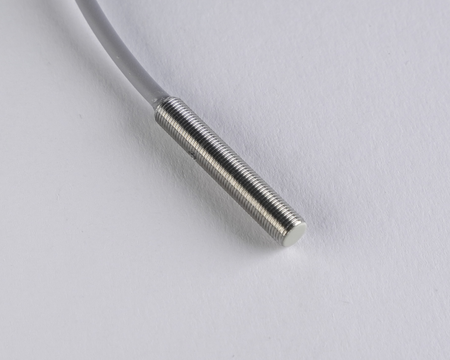

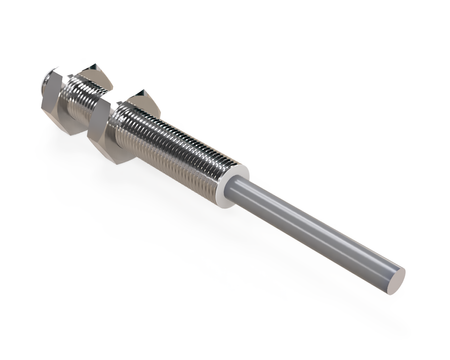

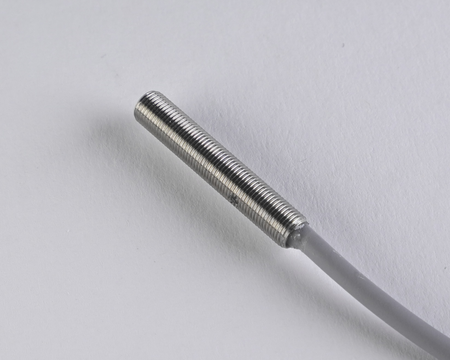

Inductive sensor M5 30 mm cable 2m NPN NC Sn = 1,5 mm

+ Add to compareAdd to shopping list
  • ● M5 enables dense component placement
  • ● Stainless steel housing
  • ● Standard operating zone for industrial systems
  • ● With cable – solid and reliable construction
Switching distance
Output function
Switching function
Sensor length
Connection type
Cable length
36,72 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Custom product
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Custom product
Shipment
Free and fast delivery from 9,24 €
30 days for free returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.
Files to download

An inductive sensor NIS05082 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.

The product fits into Nexotec’s line of compact sensors designed for modern industrial installations. The small diameter of Ø5 x 30 mm sensors allows installation close to other components.

Technical specification:

  • Diameter: M5,
  • Length: 30 mm, universal dimensions for most applications
  • Sensing range: 1,5 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, resistant to aggressive industrial environments
  • Sensing face material: PBT, sensing face material – PBT
  • Mounting: Flush mounting
  • Switching function: NC, signal continuity monitoring
  • Cable length: 2 m
  • Supply voltage: DC 10-30V, compatible with PLC systems

Applications

  • Position control of parts in automotive assembly lines.
  • Position control of machine axes and working components.
  • Use in automation of packaging and sorting processes.
  • Application in robotic systems for detecting element positions.
  • Operation in demanding industrial high-reliability environments.

Features and Benefits

  • Compatibility with standard industrial control systems
  • Reliable operation in automated packaging systems
  • Compatibility with industrial robots and EOAT systems
  • Resistance to electromagnetic interference

When to choose this model

  • Used in systems where precision with small components is important.
  • Ensures stable operation under standard industrial conditions.
  • Good for systems with high component density.
  • Used in automation with limited installation space.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05082
Producer code
5907367803396
Series
NIS05
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M5
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

1.5 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NC
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
100mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
NO
Reverse polarity protection
YES
Overload trip point
-
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

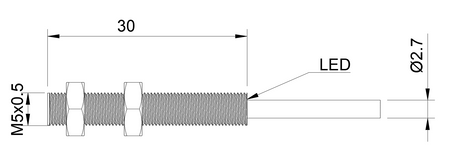

Dimensions
Ø5 x 30 mm
Sensor length
30 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Number of wires
3
Cable length
2 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PUR
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS05082
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
34 g
Weight in kg
0,039
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
