Symbol: NIS05554

Inductive sensor M5 28 mm cable 5m PNP NC Sn = 1,5 mm

+ Add to compareAdd to shopping list
  • ● M5 ideal for small installations
  • ● Compact housing for small systems
  • ● Precise Sn distance for standard systems
  • ● With cable – operating temperature -25 °C to +70 °C
Switching distance
Output function
Switching function
Sensor length
Connection type
Cable length
45,57 €
net / 1pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
List price:
You can buy for pts.
of
You can also buy using:
Create a request for quotation
Product available in very large quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very large quantities
Shipment
Free and fast delivery from 9,30 €
30 days for free returns
Find out in which store you can check the product and buy it right away
Inductive sensor M5 28 mm cable 5m PNP NC Sn = 1,5 mm
Inductive sensor M5 28 mm cable 5m PNP NC Sn = 1,5 mm
Switching distance:1.5 mm
Output function:PNP
Switching function:NC
Sensor length:28 mm
Connection type:Cable
Cable length:5 m
one size
Safe shopping
After purchase you will receive pts.
Files to download

A modern inductive sensor NIS05554 with a PBT sensing face provides a long service life in demanding industrial environments.

The product fits into Nexotec’s line of compact sensors designed for modern industrial installations. The miniature Ø5 x 28 mm housing enables installation where standard sizes are not applicable.

Technical specification:

  • Diameter: M5,
  • Length: 28 mm, design intended for tight installation spaces
  • Sensing range: 1,5 mm
  • Housing: Threaded housing sensor
  • Housing material: Stainless steel, resistant to aggressive industrial environments
  • Sensing face material: PBT,
  • Mounting: Flush mounting
  • Switching function: NC, used in safety functions
  • Cable length: 5 m
  • Supply voltage: DC 10-30V, commonly used control supply

Applications

  • Use in positioning and production synchronization systems.
  • Application in material feeding and unloading systems.
  • Application in packaging transport systems.
  • Detection of elements in robotic work zones.
  • Application in industrial machines for controlling position of moving parts.

Features and Benefits

  • Signal repeatability in mass production processes
  • Reliable detection of workpiece and tool positions
  • Stable detection in high-throughput processes
  • Resistance to electromagnetic interference

When to choose this model

  • Suitable for compact OEM machines and special-purpose equipment.
  • Suitable for upgrading existing machines.
  • Often used in modern compact OEM designs.
  • Used in systems with limited service access.
Other information
Brand
Nexotec
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress: Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolandPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05554
Producer code
5907367804287
Series
NIS05
Warranty
24-month warranty
General information
DiameterMore

The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.

M5
Switching distanceMore

Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.

1.5 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NC
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Reverse polarity protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.1 ms
Switching frequency
2 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

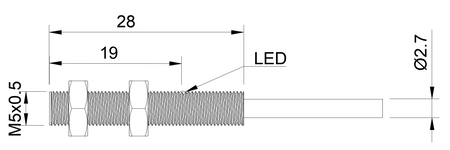

Dimensions
Ø5 x 28 mm
Sensor length
28 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
5 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PUR
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Other
Manufacturer code
NIS05554
Condition
New
Packaging condition
Original
Type
Inductive
Net weight
57 g
Weight in kg
0,062
Reduction factor
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nickel
0,6 - 0,75
