Inductive sensor M5 28 mm cable 3m PNP NC Sn = 1,5 mm
Symbol:
NIS05354

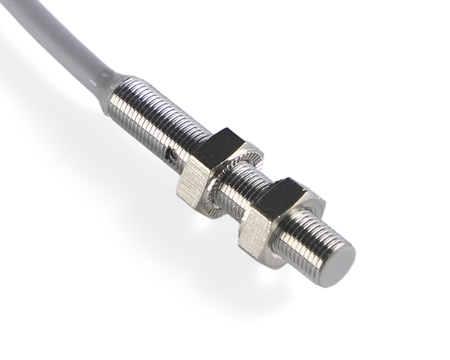

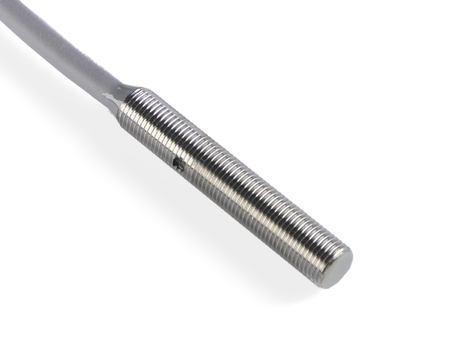

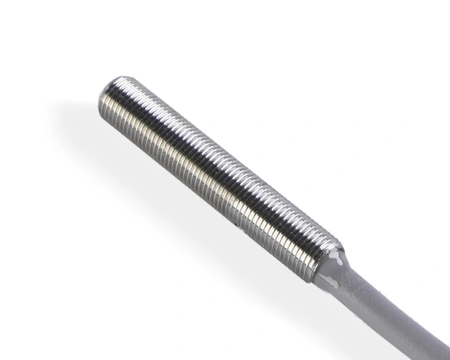

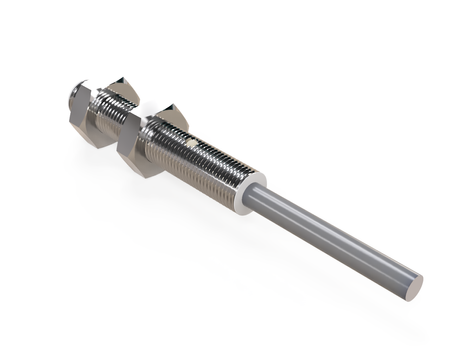

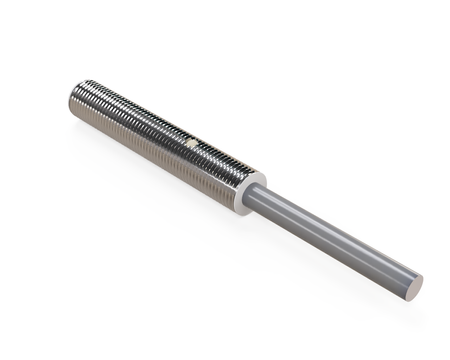

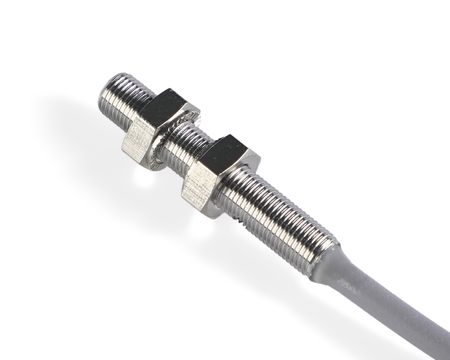

Inductive sensor M5 28 mm cable 3m PNP NC Sn = 1,5 mm
- ● M5 enables precise positioning
- ● Short housing for densely packed assemblies
- ● Nominal distance ensuring stability
- ● With cable – convenient maintenance and service
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS05354
A Teflon-faced inductive sensor NIS05354 is an excellent choice for automation systems where reliability and repeatable performance are essential.
The sensor belongs to the Nexotec series focusing on small but efficient solutions for automation and production., The slim Ø5 x 28 mm design enables installation in tight channels.
Technical specification:
- Diameter: M5,
- Length: 28 mm, low weight and compact sensor format
- Sensing range: 1,5 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT,
- Mounting: Semi-flush mounting
- Switching function: NC, used in safety functions
- Cable length: 3 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Operation in demanding industrial automotive environments.
- Application in material feeding and unloading systems.
- Detection of metal elements and components in packaging systems.
- Support for synchronization of robots and machines.
- Use in mass and custom production systems.
Features and Benefits
- Resistance to vibrations and intensive operation
- Resistance to coolants, oils and industrial contaminants
- Reliable operation in automated packaging systems
- Reliable operation in safety and control systems
When to choose this model
- Used in systems where precision with small components is important.
- Suitable for upgrading existing machines.
- Well suited for multi-point applications.
- Performs well in systems with many closely spaced detection points.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS05354
Producer code
5907367803914
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M5
Switching distance
1,5 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,1ms
Switching frequency
2kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

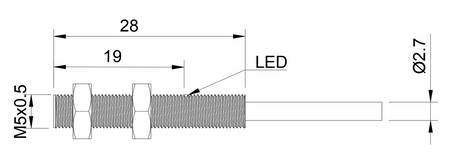

Dimensions
Ø5 x 28 mm
Sensor length
28 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
3 m
Cable diameter
⌀ 2,7 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS05354
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
